Heavy Duty Stainless Steel Straight Coupling with Equipped B3 Ring
Heavy Duty Stainless Steel Straight Coupling with Equipped B3 Ring
SKU:FIT-610bdc
High-performance stainless steel straight coupling for heavy-duty applications. Meets DIN 2353 standards. Tube Diameter: 30.0 mm. Pressure: 630 bar.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Heavy Duty Stainless Steel Straight Coupling with Equipped B3 Ring
$39.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Stainless Steel Straight Coupling with Equipped B3 Ring
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

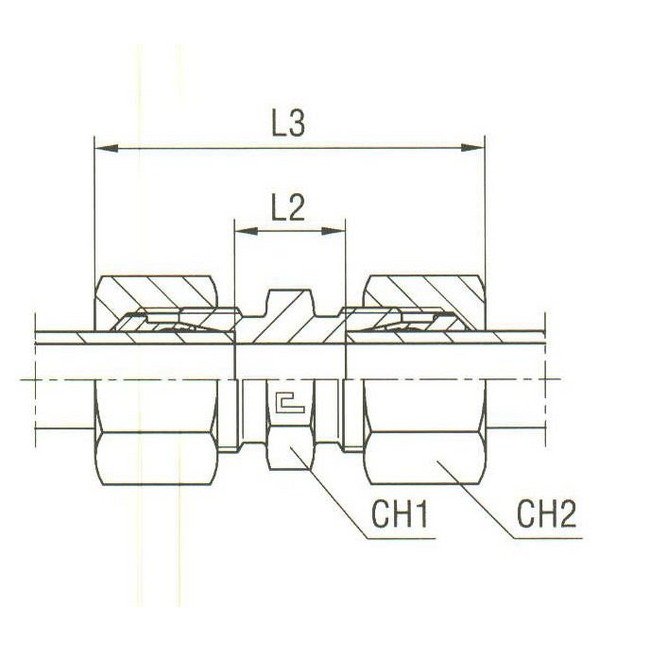

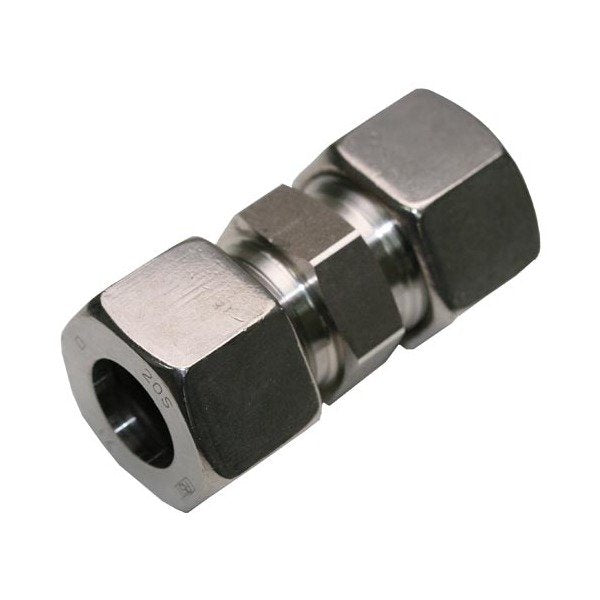

The Heavy Duty Stainless Steel Straight Coupling with Equipped B3 Ring is a reliable fitting designed for robust applications. Made from high-quality stainless steel, this coupling ensures durability and longevity. With a Pressure rating of 630 bar and meeting DIN 2353 standards, it guarantees secure connections. The 30.0 mm Tube Diameter and precise measurements (L2: 27.0 mm, L3: 80 mm, CH1: 46 mm, CH2: 50 mm) make this coupling ideal for various industrial uses.
Product Specifications
Specifications Ch1
46 mm
Specifications Ch2
50 mm
Specifications L2
27.0 mm
Specifications L3
80 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
630 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
30.0 mm
