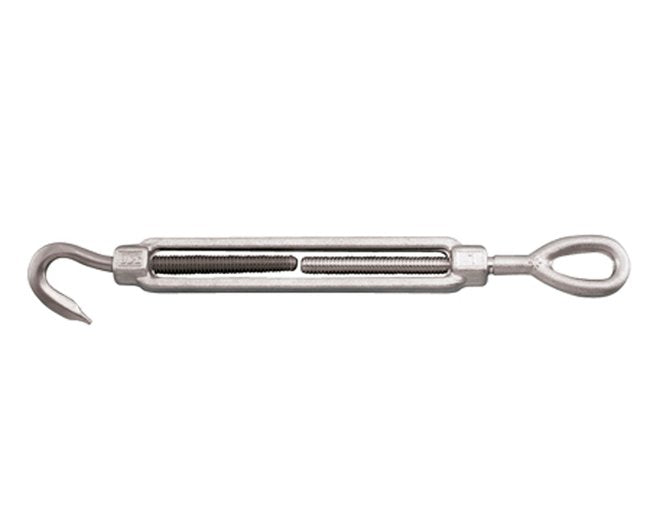

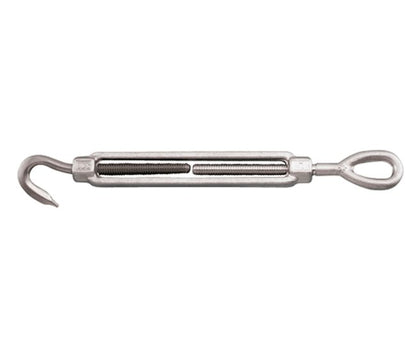

Heavy-Duty Stainless Steel Turnbuckle - 316 Grade, Forged Hook and Eye

Name: Heavy-Duty Stainless Steel Turnbuckle - 316 Grade, Forged Hook and Eye
Brand: Suncor Stainless, Inc.
SKU: STA-baaf4b
Price: 44.99 USD
Availability: OutOfStock

SKU:STA-baaf4b

Upgrade marine and industrial projects with our 316-grade stainless steel turnbuckle. Corrosion-resistant and ASTM compliant.

$44.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your marine and industrial projects with the Heavy-Duty Stainless Steel Turnbuckle. Crafted from grade 316 stainless steel, this forged hook and eye turnbuckle offers exceptional corrosion resistance and durability. Meeting ASTM specification F1145-05 (2011) Type 1, Class F, it ensures reliability and safety. With a Working Load Limit (WLL) of 2000 lb, it is ideal for heavy-duty applications. This Suncor exclusive turnbuckle is ASME B30.26-2010 Section 26-2.0 and ATSM F1145-05 (2011) Type 1, Class D compliant.

Product Specifications

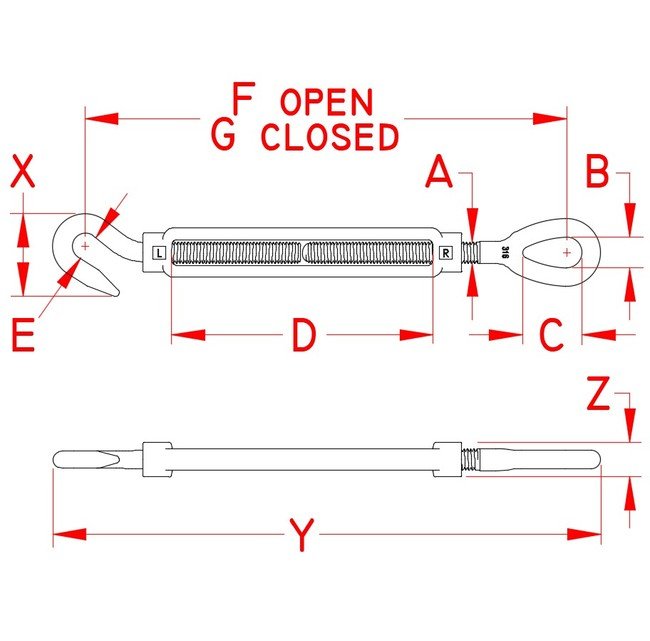

Specifications Dimension A

3/4 in

Specifications Dimension B

1.00 in

Specifications Dimension C

2.02 in

Specifications Dimension D

6.00 in

Specifications Dimension E

0.95 in

Specifications Dimension F

21.50 in

Specifications Dimension G

15.50 in

Specifications Dimension X

2.68 in

Specifications Dimension Y

17.75 in

Specifications Dimension Z

1.15 in

Specifications Fabrication Type

Drop Forged

Specifications Load Rated

Yes

Specifications Made In

Import

Specifications Material

316-NM Stainless Steel

Specifications Specification

ASME B30.26-2010 Section 26-2.0 | ATSM F1145-05 (2011) Type 1 | Class D

Specifications Suncor Exclusive

Yes

Specifications Weight

3.95 lb

Specifications Working Load Limit Wll

2000 lb

CAGE

1CXX6

NAICS

332510

PSC

4030
