Heavy-Duty Stainless Steel Turnbuckle - Suncor Forged Jaw and Jaw
Heavy-Duty Stainless Steel Turnbuckle - Suncor Forged Jaw and Jaw
SKU:STA-ac2617
Enhance projects with the durable Suncor Forged Jaw and Jaw Turnbuckle. Meets ASTM & ASME standards.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Heavy-Duty Stainless Steel Turnbuckle - Suncor Forged Jaw and Jaw
$49.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Stainless Steel Turnbuckle - Suncor Forged Jaw and Jaw
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

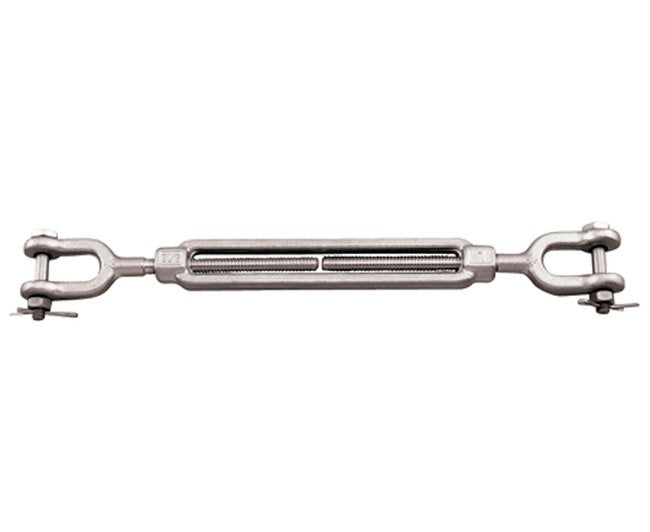

Upgrade your marine and industrial projects with the Heavy-Duty Stainless Steel Turnbuckle. Crafted from grade 316 stainless steel, this turnbuckle offers superior corrosion resistance and durability. Meeting ASTM specification F1145-05 (2011) Type 1, Class G, and ASME B30.26-2010 Section 26-2.0 standards, it provides a reliable Working Load Limit of 8,000 lb for secure usage. Exclusive to Suncor, this turnbuckle is drop forged for maximum strength and performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

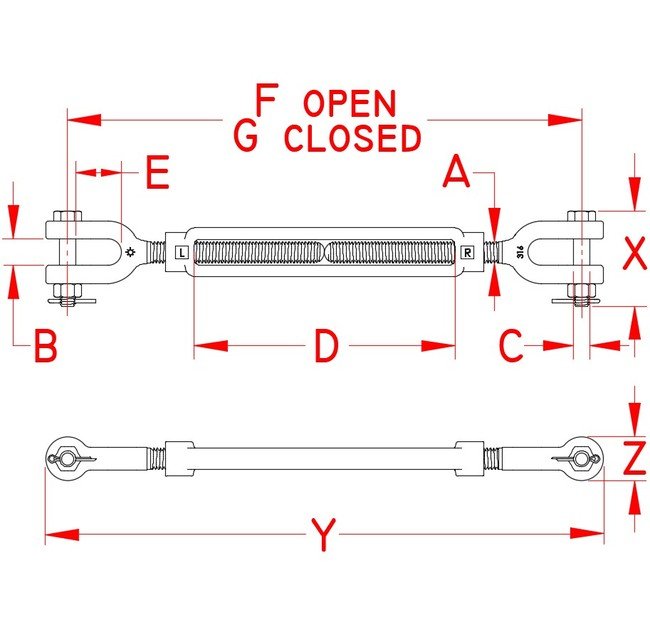

Specifications Dimension A
1 in
Specifications Dimension B
1.25 in
Specifications Dimension C
0.88 in
Specifications Dimension D
12.00 in
Specifications Dimension E
2.24 in
Specifications Dimension F
35.50 in
Specifications Dimension G
24.00 in
Specifications Dimension X
4.43 in
Specifications Dimension Y
27.00 in
Specifications Dimension Z
2.06 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
ASME B30.26-2010 Section 26-2.0 | ATSM F1145-05 (2011) Type 1 | Class D | MIL-DTL-32655
Specifications Suncor Exclusive
Yes
Specifications Weight
13.39 lb
Specifications Working Load Limit Wll
8,000 lb
CAGE
1CXX6
NAICS
332510
PSC
4030
