Heavy Duty Stainless Steel UNC Threaded Eye Bolt with Washer and Nut

Heavy Duty Stainless Steel UNC Threaded Eye Bolt with Washer and Nut

SKU:STA-2d07f3

Durable stainless steel eye bolt with washer and nut, UNC threaded for secure lifting applications.

Regular price $39.99
Regular price Sale price $39.99
Sale

Initiate Order

Heavy Duty Stainless Steel UNC Threaded Eye Bolt with Washer and Nut

Heavy Duty Stainless Steel UNC Threaded Eye Bolt with Washer and Nut

$39.99

Quantity: 1

Claim Your Seller Account

Heavy Duty Stainless Steel UNC Threaded Eye Bolt with Washer and Nut

Heavy Duty Stainless Steel UNC Threaded Eye Bolt with Washer and Nut

$39.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

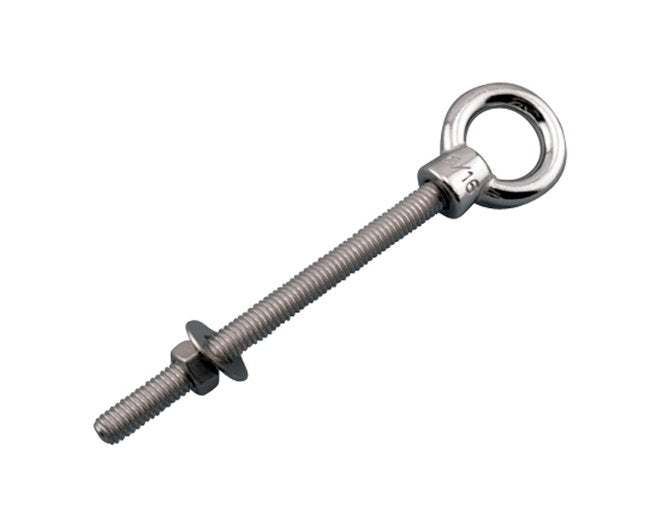

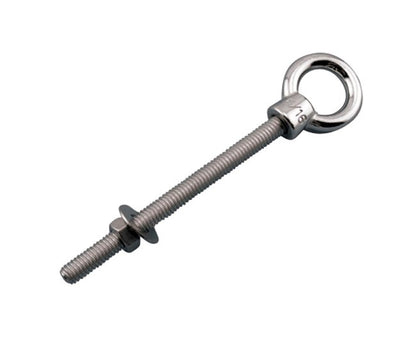

The Heavy Duty Special Eye Bolt is a robust solution for secure lifting applications. Constructed from grade 316 stainless steel, this eye bolt is resistant to corrosion and offers exceptional durability. Featuring a fully threaded rod welded into an eye nut, it comes complete with a nut and washer. Available in sizes ranging from 1/4" to 1", it offers a Working Load Limit (WLL) of 4,700 lb. Precision cast and machined, this eye bolt by Suncor is a reliable choice for heavy-duty tasks.

Product Specifications

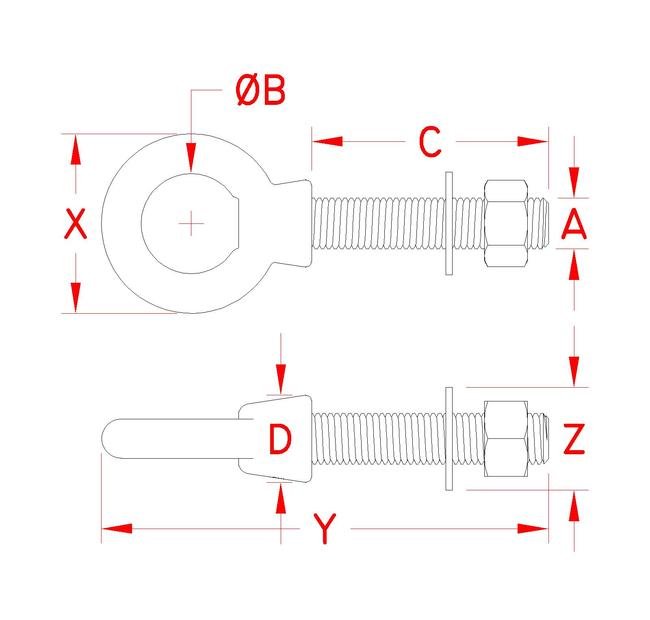

Specifications Dimension A
3/4 in
Specifications Dimension B
1.57 in
Specifications Dimension C
18.00 in
Specifications Dimension D
1.33 in
Specifications Dimension X
2.76 in
Specifications Dimension Y
21.50 in
Specifications Dimension Z
1.55 in
Specifications Fabrication Type
Precision Cast | Precision Machined
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Weight
2.85 lb
Specifications Working Load Limit Wll
4,700 lb
CAGE
1CXX6
NAICS
332722
PSC
5306
