Heavy-Duty Standard Pole Rotary Chuck
Heavy-Duty Standard Pole Rotary Chuck
SKU:HIG-470482
Heavy-Duty Rotary Chuck for high-power applications on lathes, grinders, and machinery. Customize top plate for versatile use.
Regular price
$329.99
Regular price
Sale price
$329.99
Unit price
per
Initiate Order
Heavy-Duty Standard Pole Rotary Chuck
$329.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Standard Pole Rotary Chuck
$329.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

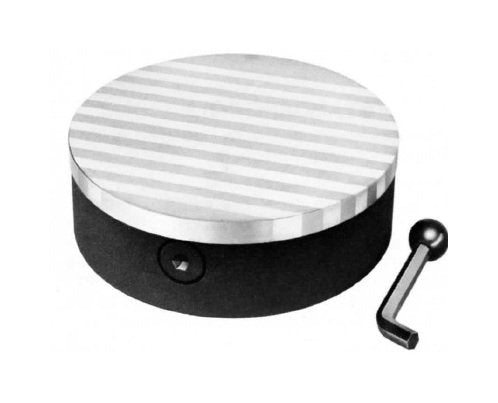

The Heavy-Duty Standard Pole Rotary Chuck is designed for high-power applications, featuring magnetic steel top plates and stainless furnace brazed construction. With a robust build to withstand heavy lathe cuts, this rotary chuck is ideal for use on lathes, grinders, and machinery with rotating spindles. The top plate can be customized for odd configurations, ensuring versatility in various work settings. Dowel pins or screws can be added to enhance stability, making it a reliable choice for industrial operations.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Manufacturing Notes 0
7 to 9 in. and 14 in. Round available on request.

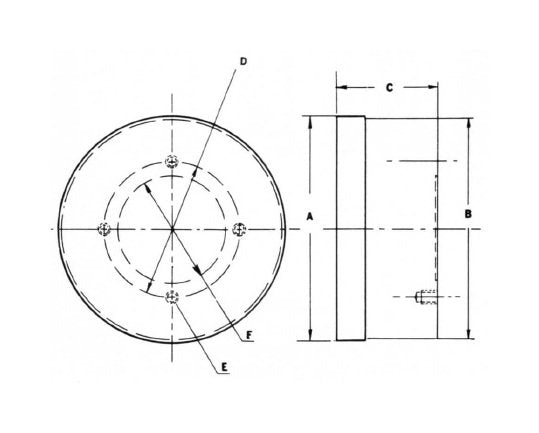

Specifications Dimension A
10 1/4 in
Specifications Dimension B
10 in
Specifications Dimension C
3 3/4 in
Specifications Dimension D
8 in
Specifications Dimension E
3/8 in-16 X 5/8 in
Specifications Dimension F
6 3/4 in
Specifications Number Of Holes
4
Specifications Pole Spacing
3/8 in
Specifications Weight
49 lb
