Heavy Duty Steel Running Gear for W Beam Crane Control
Heavy Duty Steel Running Gear for W Beam Crane Control
SKU:CRA-7e0e4e
Enhance crane control with Series 450 Running Gear for W Beams - durable, high-performance steel rollers.
Regular price
$219.00
Regular price
Sale price
$219.00
Unit price
per
Initiate Order
Heavy Duty Steel Running Gear for W Beam Crane Control
$219.00
Quantity: 1
Claim Your Seller Account
Heavy Duty Steel Running Gear for W Beam Crane Control
$219.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

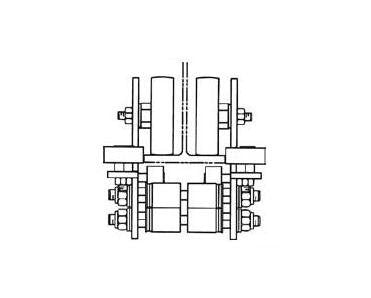

The Series 450 Running Gear for W Beams is a sturdy solution for crane control systems. This running gear includes four side shields with hardened steel main rollers and zinc-plated horizontal guide and anti-lift rollers, ensuring smooth operation. Designed for convenience, it features independent side shield removal. With a maximum load capacity of 450 lbs and a speed of 500 fpm, this running gear is ideal for heavy-duty applications. Operating within a temperature range of -22 to 220 °F, the main rollers have a diameter of 2.5 inches. Upgrade your cable festoon system with this efficient and durable running gear.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Beam Size
W8 x 15 in
Specifications Main Roller Diameter
2.5 in | 62 mm
Specifications Maximum Load
450 lb | 204 kg
Specifications Operating Temperature
-22 to 220 ºF
Specifications Running Gear Type
Steel Main Rollers, Crowned, with Horizontal Guide & Anti-Lift Rollers
Specifications Speed
500 fpm
Specifications Weight
27.3 lb | 12.4 kg
