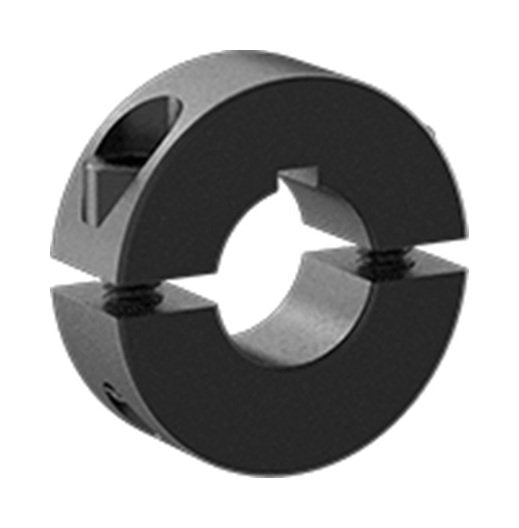

Heavy Duty Steel Shaft Collar with Keyway, 5/8 in Bore
Heavy Duty Steel Shaft Collar with Keyway, 5/8 in Bore
SKU:ROU-97643d
Precision machined Steel Shaft Collar with Keyway for secure shaft positioning and protection. Easy to adjust for optimal performance.
Regular price
$24.62
Regular price
Sale price
$24.62
Unit price
per
Initiate Order
Heavy Duty Steel Shaft Collar with Keyway, 5/8 in Bore
$24.62
Quantity: 1
Claim Your Seller Account
Heavy Duty Steel Shaft Collar with Keyway, 5/8 in Bore
$24.62
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Two-Piece Split Clamp-Type Shaft Collars with Keyways offer exceptional versatility for standard round shafts or thin wall tubes. Precision machined from 1215 alloy steel with black oxide finish, these collars provide high clamping power while protecting shafts from damage. Available in both Low Profile and Heavy Duty styles, the Heavy Duty variant boasts 2X holding power thanks to its larger clamp screw and OD. Completely disassemblable, non-marring, and easy to adjust, these collars meet stringent industrial standards for reliability and durability.
Product Specifications
Dimensional Attributes Bore Size
5/8 in
Dimensional Attributes Keyway
3/16 in
Dimensional Attributes Outside Diameter
1.750 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Size
1/4-28 x 3/4
Dimensional Attributes Width
0.500 in
Specifications Alloy
1215
Specifications Approximate Weight
0.24 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications List Price
24.62 USD
Specifications Material
Steel
Specifications Part Number
2L010HDK
Specifications Reach Compliant
Yes
Specifications Rohs Compliant
Yes
Specifications Screw Material
Alloy Steel
Specifications Series
Signature
Specifications Type
Heavy Duty
Specifications Upc Code
662786044021
