Heavy Duty Straight Coupling - Carbon Steel Body - DIN 2353 Compression Fittings
Heavy Duty Straight Coupling - Carbon Steel Body - DIN 2353 Compression Fittings
SKU:FIT-15d849
Durable Heavy Duty Straight Coupling for high-pressure applications, meets DIN 2353 standards.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Heavy Duty Straight Coupling - Carbon Steel Body - DIN 2353 Compression Fittings
$24.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Straight Coupling - Carbon Steel Body - DIN 2353 Compression Fittings
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Straight Coupling features a durable Carbon Steel body designed for heavy-duty applications. With a tube diameter of 10.0mm and a nominal operating pressure of 630 bar, this fitting is built to withstand high pressures. It meets DIN 2353 standards, ensuring quality and reliability in industrial settings.

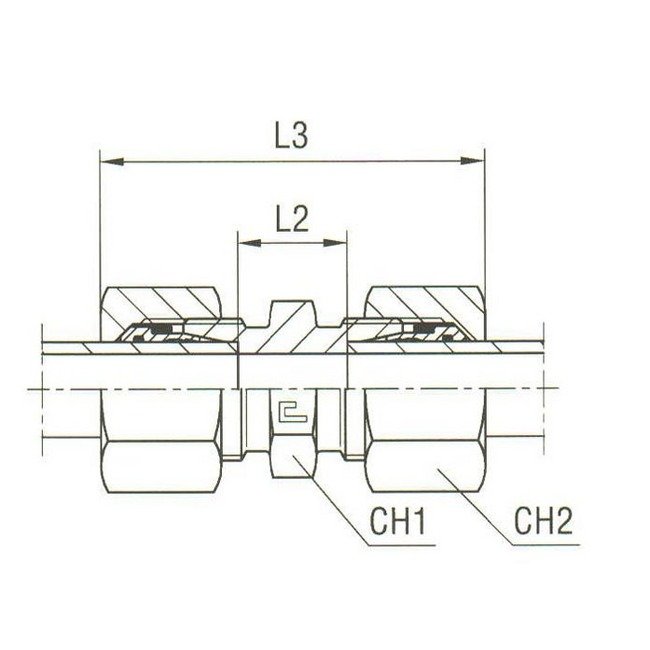

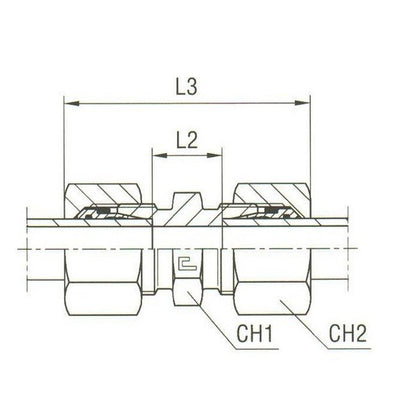

Product Specifications
Specifications Ch1
19.0 mm
Specifications Ch2
22 mm
Specifications L2
17.0 mm
Specifications L3
49 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
630 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
10.0 mm
