Heavy Duty Straight Coupling with B3 Ring - Carbon Steel - 16.0mm - DIN 2353 Compliant
Heavy Duty Straight Coupling with B3 Ring - Carbon Steel - 16.0mm - DIN 2353 Compliant
SKU:FIT-468ec3
Highly durable Carbon Steel Straight Coupling with 16.0mm tube diameter, max 630 bar pressure, DIN 2353 compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Heavy Duty Straight Coupling with B3 Ring - Carbon Steel - 16.0mm - DIN 2353 Compliant
$29.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Straight Coupling with B3 Ring - Carbon Steel - 16.0mm - DIN 2353 Compliant
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Straight Coupling features a durable Carbon Steel body suitable for high-pressure applications up to 630 bar. With a tube diameter of 16.0mm and compliance with DIN 2353 standards, this coupling guarantees reliable performance. The Equipped B3 Ring enhances sealing efficiency, making it ideal for industrial and hydraulic systems.

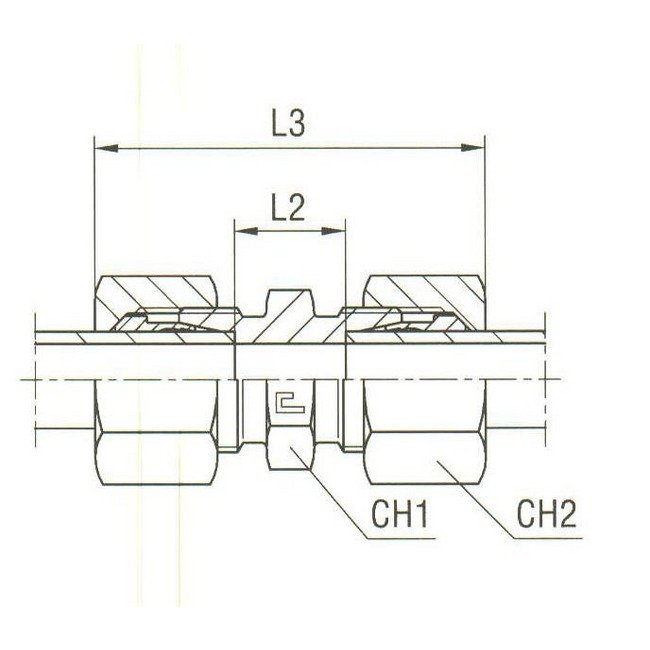

Product Specifications
Specifications Ch1
27 mm
Specifications Ch2
30 mm
Specifications L2
21.0 mm
Specifications L3
57 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
630 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
16.0 mm
