Heavy Duty Straight Coupling with Equipped B3 Ring - Carbon Steel, 38.0mm
Heavy Duty Straight Coupling with Equipped B3 Ring - Carbon Steel, 38.0mm
SKU:FIT-664158
Durable Heavy Duty Straight Coupling with Equipped B3 Ring, Carbon Steel, 38.0mm, DIN 2353 compliant
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Heavy Duty Straight Coupling with Equipped B3 Ring - Carbon Steel, 38.0mm
$45.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Straight Coupling with Equipped B3 Ring - Carbon Steel, 38.0mm
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Straight Coupling features a robust design suitable for industrial applications. Constructed from Carbon Steel, this coupling ensures durability and reliability under high pressure conditions. With a Tube Diameter of 38.0mm and a Nominal Operating Pressure of 315 bar, it meets DIN 2353 standards for compression fittings. The Equipped B3 Ring enhances sealing performance, making it a versatile choice for fluid systems.

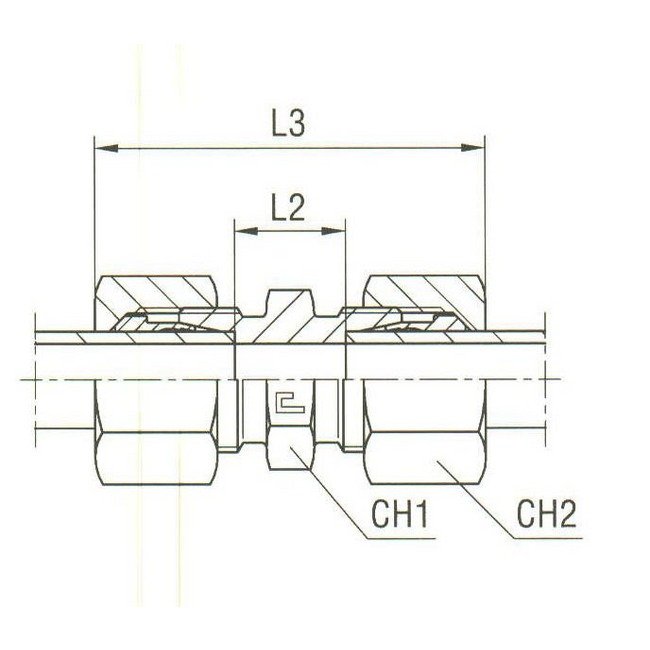

Product Specifications
Specifications Ch1
55 mm
Specifications Ch2
60 mm
Specifications L2
29.0 mm
Specifications L3
90 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
38.0 mm
