Heavy Duty Swivel Hoist Ring - Inch
Heavy Duty Swivel Hoist Ring - Inch
SKU:HOI-a5af05
High-performance Heavy Duty Swivel Hoist Ring - Inch designed for heavy lifting with 360-degree rotation, self-aligning feature, and 5000 lb load rating. Compliant with industry standards.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Heavy Duty Swivel Hoist Ring - Inch
$89.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Swivel Hoist Ring - Inch
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

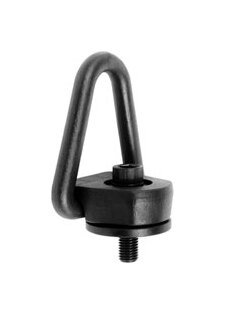

The Heavy Duty Swivel Hoist Ring - Inch is a top-of-the-line industrial hoist ring crafted from alloy steel with a durable black oxide finish. Engineered to rotate 360 degrees and self-align in the load direction, this hoist ring ensures optimal functionality and safety. With a load rating of 5000 pounds, this unit boasts a pivot angle of 90 degrees and a torque capacity of 100 lb·ft. Additionally, it features precise dimensions, including a diameter of 0.50 in and a thread size of 3/4-10, making it suitable for a wide range of heavy-duty lifting applications. Compliant with strict industry standards and 100% magnetic particle inspected, this hoist ring guarantees reliability and performance in demanding environments.
Product Specifications
Specifications A Radius
0.75 in
Specifications B Base Height
1.78 in
Specifications Country Of Origin
US
Specifications D Diameter
0.50 in
Specifications E Thread Length
1.23 in
Specifications Finish
Black Oxide
Specifications F Height
4.72 in
Specifications G Thread Size
3/4-10
Specifications H1 Inside Clearance
3.19 in
Specifications H Inside Clearance
2.94 in
Specifications I Overall Width
3.88 in
Specifications J Base Width
2.19 in
Specifications Material
Alloy Steel
Specifications Pivot
90 º
Specifications Ps Load Rated
5000 Pounds (2268 kg)
Specifications Swivel
360 º
Specifications Torque
100.00 lb·ft
Specifications V Center Line 1
1.25 in
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications Weight
2.34 lb
Specifications W Center Line 2
5.13 in
