Heavy Duty Take Apart Hinges - Stainless Steel Grade 316
Heavy Duty Take Apart Hinges - Stainless Steel Grade 316
SKU:STA-6910e2
Durable grade 316 stainless steel hinges with secure locking tab for heavy-duty applications.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

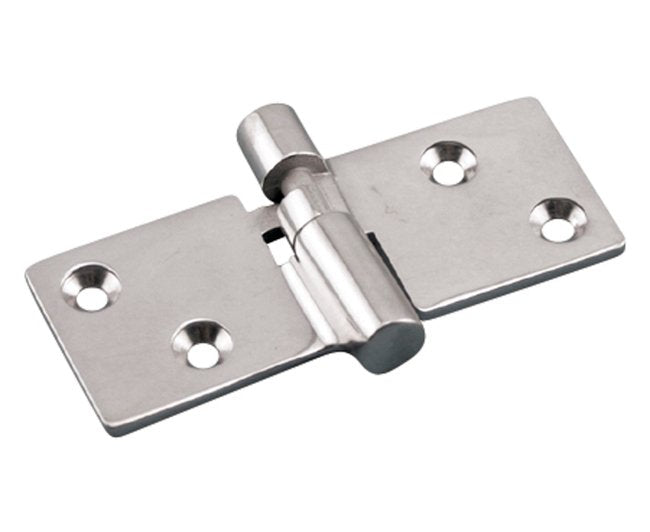

The Heavy Duty Take Apart Hinges are expertly crafted from grade 316 stainless steel, ensuring exceptional corrosion resistance and durability, making them ideal for heavy-duty applications. These hinges feature a foolproof locking tab mechanism that prevents accidental disassembly, providing reliable security and peace of mind. With precision cast fabrication, easy installation using #10 fasteners, and meticulous engineering, these hinges guarantee long-term performance under demanding conditions.

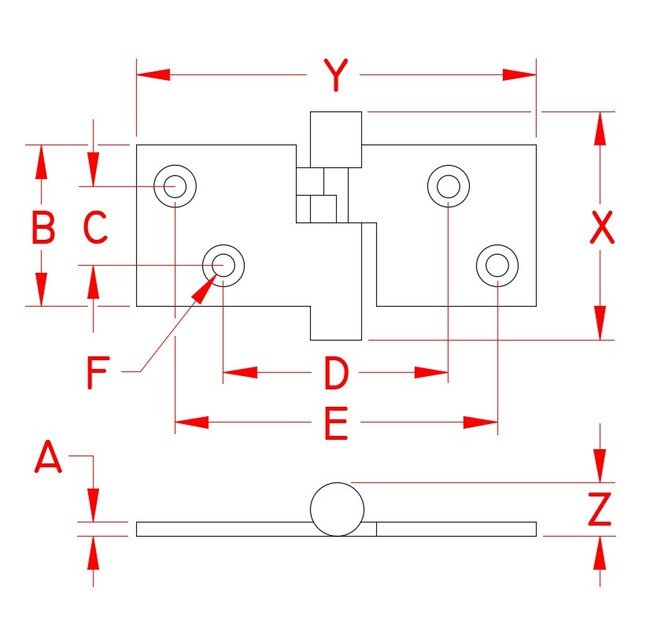

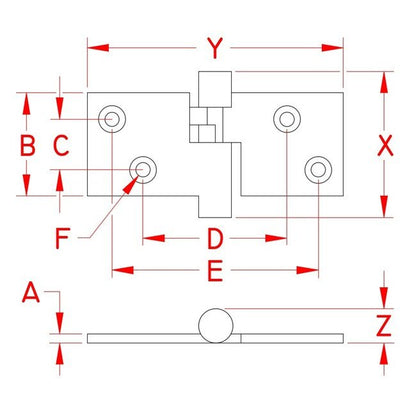

Product Specifications
Specifications Dimension A
0.13 in
Specifications Dimension B
1.45 in
Specifications Dimension C
0.73 in
Specifications Dimension D
2.00 in
Specifications Dimension E
2.90 in
Specifications Dimension F
0.20 in
Specifications Dimension X
2.05 in
Specifications Dimension Y
3.54 in
Specifications Dimension Z
0.47 in
Specifications Fabrication Type
Precision Cast
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Weight
0.242 lb
CAGE
1CXX6
NAICS
332999
PSC
5340
