Heavy-Duty Tapered Dual-Function Plastic Caps and Plugs

Name: Heavy-Duty Tapered Dual-Function Plastic Caps and Plugs
Brand: Arizona Sealing Devices, Inc.
SKU: CAP-919564
Price: 14.99 USD
Availability: OutOfStock

SKU:CAP-919564

Versatile Heavy-Duty Plastic Caps & Plugs for maximum protection and secure fittings. Perfect for wide-ranging industrial applications.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

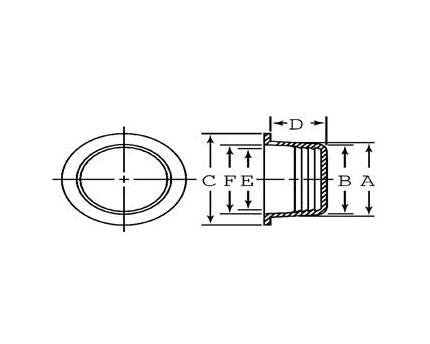

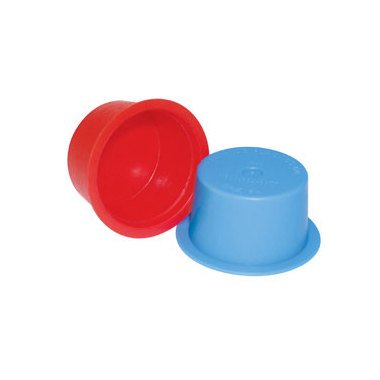

The Heavy-Duty Tapered Dual-Function Plastic Caps and Plugs from our Number Series are crafted from Low-Density Polyethylene in a vibrant red color. These caps and plugs feature a rugged wall and seal rings for maximum protection. Their tapered design allows for versatile usage, fitting multiple inner diameters or capping various outside diameters. For proper fit, ensure plug dimension 'A' is 1% larger than the inner diameter of the part, and cap dimension 'E' is 1% smaller than the outside diameter, with minimum tolerances specified for each measurement.

Product Specifications

Specifications Color

Red

Specifications Dimension A

4.85 in | 123.19 mm

Specifications Dimension B

4.64 in | 117.86 mm

Specifications Dimension C

5.25 in | 133.35 mm

Specifications Dimension D

0.91 in | 23.11 mm

Specifications Dimension E

4.57 in | 116.08 mm

Specifications Dimension F

4.78 in | 121.41 mm

Specifications Material

Low-Density Polyethylene

Heavy-Duty Tapered Dual-Function Plastic Caps and Plugs
