Heavy-Duty Tapered Dual-Function Plastic Caps & Plugs - Non-Threaded Series

Name: Heavy-Duty Tapered Dual-Function Plastic Caps & Plugs - Non-Threaded Series
Brand: Arizona Sealing Devices, Inc.
SKU: CAP-593638
Price: 15.99 USD
Availability: OutOfStock

SKU:CAP-593638

Versatile tapered plastic caps & plugs for secure sealing of various diameters. Heavy-duty design in vibrant red color.

$15.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

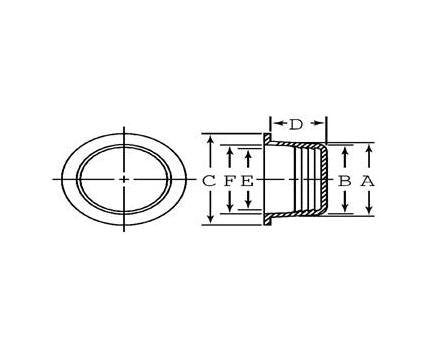

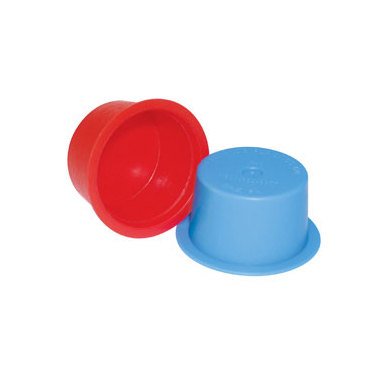

The Heavy-Duty Tapered Dual-Function Plastic Caps & Plugs from our Non-Threaded Series are crafted from Low-Density Polyethylene in a vibrant red color. These caps and plugs feature a robust wall with seal rings for maximum protection. Their tapered design enables them to fit various inner and outer diameters accurately, ensuring a secure and versatile sealing solution. To ensure a proper fit, plug dimension A should be slightly larger than the part's inner diameter, while cap dimension E should be a tad smaller than the outer diameter.

Product Specifications

Specifications Color

Red

Specifications Dimension A

3.585 in | 91.06 mm

Specifications Dimension B

3.455 in | 87.76 mm

Specifications Dimension C

3.938 in | 100.01 mm

Specifications Dimension D

0.75 in | 19.05 mm

Specifications Dimension E

3.365 in | 85.47 mm

Specifications Dimension F

3.52 in | 89.41 mm

Specifications Material

Low-Density Polyethylene

Heavy-Duty Tapered Dual-Function Plastic Caps & Plugs - Non-Threaded Series
