Heavy-Duty Tele-Mast Straddle Crane
Heavy-Duty Tele-Mast Straddle Crane
SKU:TEL-137627
Versatile Heavy-Duty Crane for Industrial Applications - Max Load 60,000 lbs
Regular price
$14,999.99
Regular price
Sale price
$14,999.99
Unit price
per
Initiate Order
Heavy-Duty Tele-Mast Straddle Crane
$14,999.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Tele-Mast Straddle Crane
$14,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

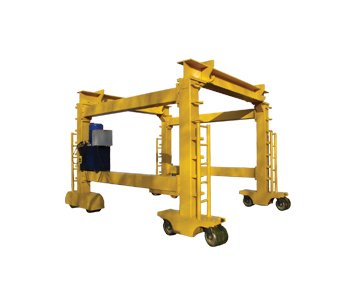

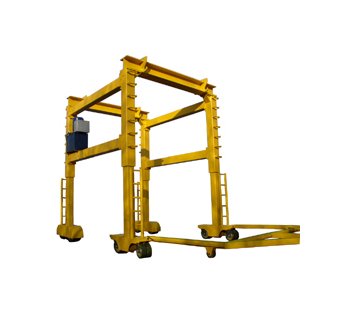

The Heavy-Duty Tele-Mast Straddle Crane by Air Technical Industries is a versatile material handling solution designed for industrial applications. With a robust load capacity of 60,000 lbs and a vertical travel range of 6 to 12 feet, this crane offers exceptional performance. It features options such as an electric engine, cross beams with hook plates, telescopic lifting forks, and a cable lift system, providing flexibility and efficiency in handling heavy loads. Whether for handling shipping containers, moving molds, or lifting generators, this portable gantry crane is engineered for durability and usability in diverse work environments.
Product Specifications
General Description General Description

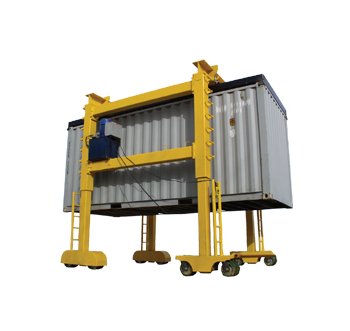

Industrial Applications The Tele-Mast Straddle Crane adapts to your unique requirements thanks to the various options and accessories available on it. While our crane can seamlessly integrate with most standard applications, it can also be customized per your requirements. Our portable gantry crane is currently being used in applications such as:Handling shipping containersLoading and unloading trucksLifting or moving heavy castingsHandling large moldsLifting or moving large generatorsOther cumbersome loadsDesigned for UsabilityMuch of the usability of material handling equipment depends on intelligent design. Our mobile gantry crane is no different. The rugged structural steel construction of the crane enables indoor as well as outdoor use. So you can confidently employ it on a construction site, dockyard or even a warehouse.Designed for MobilityAir Technical Industries offers towable or self-propelled models to suit your precise mobility requirements. The self-propelled models are available in 2-wheel and 4-wheel drives complete with powered steering for easy maneuverability. It moves with its own power source or with a tow motor.Designed for PerformanceThis workhorse has a load lifting capacity of 60,000 lbs with a vertical travel range of 6 feet to 12 feet. It is available with options such as a 230/460V 3-phase electric, propane or diesel engine.Designed for FlexibilityAir Technical Industries understands that every worksite is different. So, we have made it possible for you to use the Tele-Mast Straddle Crane as a portable gantry crane anytime you want. The crane features an assortment of lifting features such as: a spreader bar for handling shipping containers, laterally adjustable cross beams with hook plates, telescopic lifting forks, and a cable lift system.
Specifications Capacity
60000 lb
Specifications Crane Type
Straddle
Specifications Engine Phase
3
Specifications Engine Power
25 hp
Specifications Engine Type
Electric
Specifications Engine Voltage
230/460 V
Specifications Length
12 ft
Specifications Material
Steel
Specifications Mobility
Towable
Specifications Options Accessories
TMSC-CR6 - Cross beams with (4) Adj Hook Plates | TMSC-LF6 - Telescopic Lifting Forks (set of 4) | TMSC-PC4-10 - Mast Travel (Cable Travel) | TMSC-PC4-12 | TMSC-PC4-6 - Four-Pulley & Hook Cable Lift System | TMSC-PC4-8 - Vertical Travel | TMSC-SBR6 - Spreader Bar for 20 ft Container | TMSC-T6 - Tow Bar
Specifications Raised Under Beam
16 ft
Specifications Span
10 ft
Specifications Under Beam Height
10 ft
Specifications Vertical Travel
6 in
