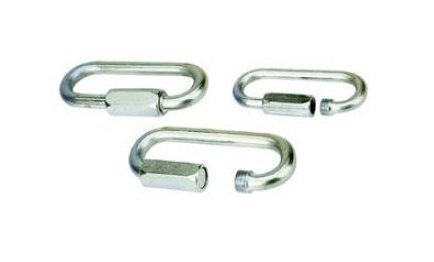

Heavy-Duty Threaded Chain Connectors
Heavy-Duty Threaded Chain Connectors
SKU:PUL-bd812a
Upgrade cable stringing with secure Heavy-Duty Threaded Chain Connectors, offering quick and reliable connections for pulling operations.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Heavy-Duty Threaded Chain Connectors
$29.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Threaded Chain Connectors
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your cable stringing and pulling operations with our Heavy-Duty Threaded Chain Connectors. These connectors offer a secure and efficient way to attach pulling eyes or swivels to winch lines, harnesses, or ropes. Simply screw the nut onto the threaded end for a quick and reliable connection. With a robust work load limit of 770 lb. (3425 N) and durable construction, these connectors ensure performance and safety in demanding applications. Designed for 1/4 inch (6mm) sized cables, featuring dimensions tailored for ease of use and compatibility with various pulling eye cable sizes and harness configurations. Reusable and versatile for different cable sizes, making them a must-have for cable stringing and pulling tasks. Ideal for industrial, construction, and utility applications.
Product Specifications

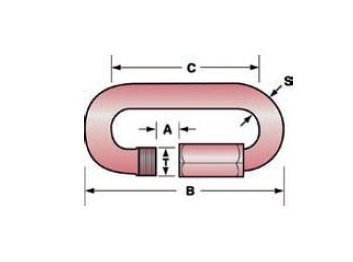

Specifications Dimension A In
0.563
Specifications Dimension A Mm
14.3
Specifications Dimension B In
2.750
Specifications Dimension B Mm
69.9
Specifications Dimension C In
2.313
Specifications Dimension C Mm
59
Specifications Eye To Eye Connectors Size
3/8, 1/2
Specifications Fixed Head Pulling Eye Id
All
Specifications Pulling Eye Cable Size Range
1/0 to 4/0 AWG | 350, 700, 750 kcmil
Specifications Pulling Harnesses Large Front Link
1/8
Specifications Pulling Harnesses Separate Leg Ends
1/4 | 1/8 | 3/8
Specifications Size In
1/4
Specifications Size Mm
6
Specifications Stock Diameter S In
0.250
Specifications Stock Diameter S Mm
6.4
Specifications Threaded Shaft T In
0.35
Specifications Threaded Shaft T Mm
9
Specifications Work Load Limit Lb
770
Specifications Work Load Limit N
3425
