Heavy-Duty Threaded Chain Connectors for Cable Stringing and Winch Lines
Heavy-Duty Threaded Chain Connectors for Cable Stringing and Winch Lines
SKU:PUL-6a8767
Securely connect pulling eyes to winch lines with our reusable Threaded Chain Connectors, perfect for cable stringing and pulling applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Heavy-Duty Threaded Chain Connectors for Cable Stringing and Winch Lines
$24.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Threaded Chain Connectors for Cable Stringing and Winch Lines
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

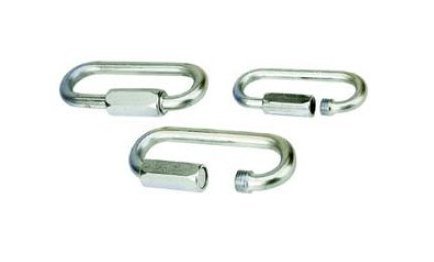

The Threaded Chain Connectors provide a reliable solution for connecting pulling eyes or swivels to winch lines, harnesses, or rope with ease. Featuring a sturdy nut closure design, these connectors are reusable and offer a work load limit of 200 lb (890 N). With dimensions crafted for precision, they ensure a secure connection for cable stringing and pulling applications. The connectors are designed to meet stringent industry standards and are suitable for a range of cable sizes, making them an essential tool for efficient and safe operations.

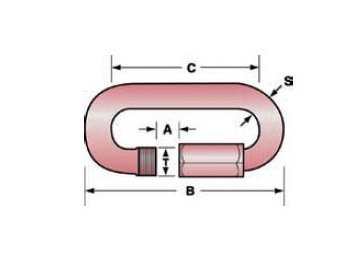

Product Specifications
Specifications Dimension A In
0.375
Specifications Dimension A Mm
9.5
Specifications Dimension B In
1.813
Specifications Dimension B Mm
46.0
Specifications Dimension C In
1.563
Specifications Dimension C Mm
40
Specifications Fixed Head Pulling Eye Id
All
Specifications Pulling Eye Cable Size Range
1/0 to 4/0 AWG
Specifications Pulling Harnesses Separate Leg Ends
1/4 | 1/8
Specifications Size In
1/8
Specifications Size Mm
3
Specifications Stock Diameter S In
0.125
Specifications Stock Diameter S Mm
3.2
Specifications Threaded Shaft T In
0.20
Specifications Threaded Shaft T Mm
5
Specifications Work Load Limit Lb
200
Specifications Work Load Limit N
890
