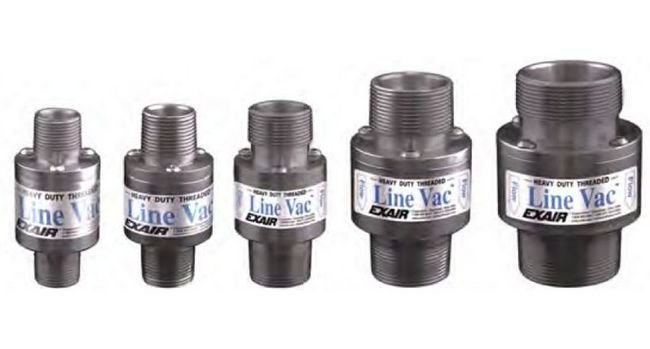

Heavy Duty Threaded Line Vac Conveyor - 1-1/4 NPT Inlet
Heavy Duty Threaded Line Vac Conveyor - 1-1/4 NPT Inlet
SKU:HEA-6ad2d4
Robust Heavy Duty Threaded Line Vac Conveyor with 1-1/4 NPT Inlet Thread for efficient industrial material handling.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Heavy Duty Threaded Line Vac Conveyor - 1-1/4 NPT Inlet
$349.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Threaded Line Vac Conveyor - 1-1/4 NPT Inlet
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Threaded Line Vac Conveyor is a robust air-operated conveying solution designed to efficiently move parts, scrap, trim, and bulk materials. Crafted from heavy-duty hardened alloy, this conveyor ensures durability and reliability in industrial environments. With an inlet thread size of 1-1/4 NPT and a vacuum pressure of -83 inWc, it delivers exceptional performance. Perfect for applications like chip removal, filling operations, and waste/trim removal, this conveyor is compact, easy to install, and noise-free. Meeting stringent industry standards, the Heavy Duty Threaded Line Vac Conveyor is a trusted choice for industrial material handling.
Product Specifications
Specifications Advantages
Available from Stock | Compact | Fits Standard Hose, Tube and Pipe | Hardened Alloy Construction | Highest Throughput Capability | No Moving Parts | Quiet
Specifications Air Consumption
49 SCFM | 1388 SLPM
Specifications Air Inlet
1/4 NPT
Specifications Applications
Chip Removal | Fiber Tensioning | Filling Operations | Hopper Loading | Material Conveying | Part Transfer | Waste/Trim Removal
Specifications Dimension E
2.25 in | 57 mm
Specifications Dimension F1
1.38 in | 35 mm
Specifications Dimension F2
1.38 in | 35 mm
Specifications Dimension H
1.25 in | 32 mm
Specifications Dimension I
1 in | 25 mm
Specifications Dimension J
2 in | 51 mm
Specifications Dimension K
0.31 in | 8 mm
Specifications Dimension L
1.61 in | 41 mm
Specifications Dimension M
0.06 in | 2 mm
Specifications Dimension N
1.68 in | 43 mm
Specifications Dimension O
0.28 in | 7 mm
Specifications Inlet Thread Size
1-1/4 NPT
Specifications Inside Diameter
1 in | 25 mm
Specifications Material
Heavy-Duty Hardened Alloy
Specifications Outlet Thread Size
1-1/4 NPT
Specifications Outside Diameter
2.38 in | 60 mm
Specifications Overall Length
4.63 in | 118 mm
Specifications Overall Width
2.50 in | 64 mm
Specifications Pipe Size
1-1/4 NPT
Specifications Pressure
80 psig | 5.5 bar
Specifications Vacuum Pressure
-83 inWc | -21 kPa
