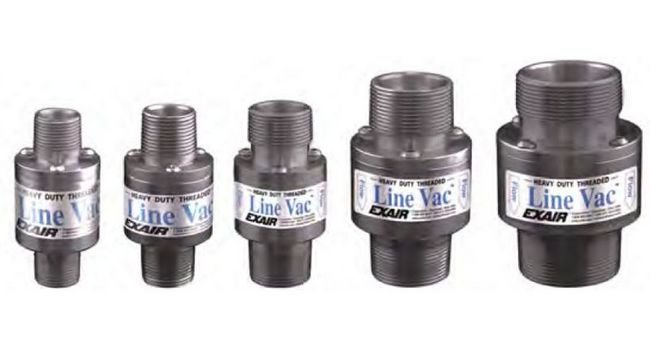

Heavy Duty Threaded Line Vac Conveyor - 2 NPT Inlet Size
Heavy Duty Threaded Line Vac Conveyor - 2 NPT Inlet Size
SKU:HEA-73d50f
Enhance your conveying system with the Heavy Duty Threaded Line Vac Conveyor - durable, efficient, and versatile.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
Heavy Duty Threaded Line Vac Conveyor - 2 NPT Inlet Size
$699.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Threaded Line Vac Conveyor - 2 NPT Inlet Size
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Meet your industrial conveying needs with the Heavy Duty Threaded Line Vac Conveyor featuring heavy-duty hardened alloy construction. This air operated conveyor system offers a reliable solution for transporting parts, scrap, trim, and bulk materials. Engineered to connect seamlessly with 2 NPT pipe fittings, it ensures durability and longevity, outperforming aluminum and stainless steel alternatives. With a vacuum pressure of -42 inWc, a high pressure rating of 80 psig, and an air consumption of 75 SCFM, this conveyor delivers superior performance while remaining compact and easy to install.
Product Specifications
Specifications Advantages
Available from Stock | Compact | Fits Standard Hose, Tube and Pipe | Hardened Alloy Construction | Highest Throughput Capability | No Moving Parts | Quiet
Specifications Air Consumption
75 SCFM | 2124 SLPM
Specifications Air Inlet
3/8 NPT
Specifications Applications
Chip Removal | Fiber Tensioning | Filling Operations | Hopper Loading | Material Conveying | Part Transfer | Waste/Trim Removal
Specifications Dimension E
2.25 in | 57 mm
Specifications Dimension F1
1.38 in | 35 mm
Specifications Dimension F2
1.38 in | 35 mm
Specifications Dimension H
1.50 in | 38 mm
Specifications Dimension I
1.17 in | 30 mm
Specifications Dimension J
2.34 in | 59 mm
Specifications Dimension K
0.28 in | 7 mm
Specifications Dimension L
1.48 in | 38 mm
Specifications Dimension M
0.06 in | 2 mm
Specifications Dimension N
2.13 in | 54 mm
Specifications Dimension O
0.28 in | 7 mm
Specifications Inlet Thread Size
2 NPT
Specifications Inside Diameter
1.75 in | 44 mm
Specifications Material
Heavy-Duty Hardened Alloy
Specifications Outlet Thread Size
2 NPT
Specifications Outside Diameter
3.25 in | 83 mm
Specifications Overall Length
4.63 in | 118 mm
Specifications Overall Width
3 in | 76 mm
Specifications Pipe Size
2 NPT
Specifications Pressure
80 psig | 5.5 bar
Specifications Vacuum Pressure
-42 inWc | -10 kPa
