Heavy-Duty Throttle Pedal with Spring Returned Mechanism
Heavy-Duty Throttle Pedal with Spring Returned Mechanism
SKU:PUS-ed283c
Enhance control with the Heavy-Duty Throttle Pedal - durable, adjustable, and easy to install.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Heavy-Duty Throttle Pedal with Spring Returned Mechanism
$49.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Throttle Pedal with Spring Returned Mechanism
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

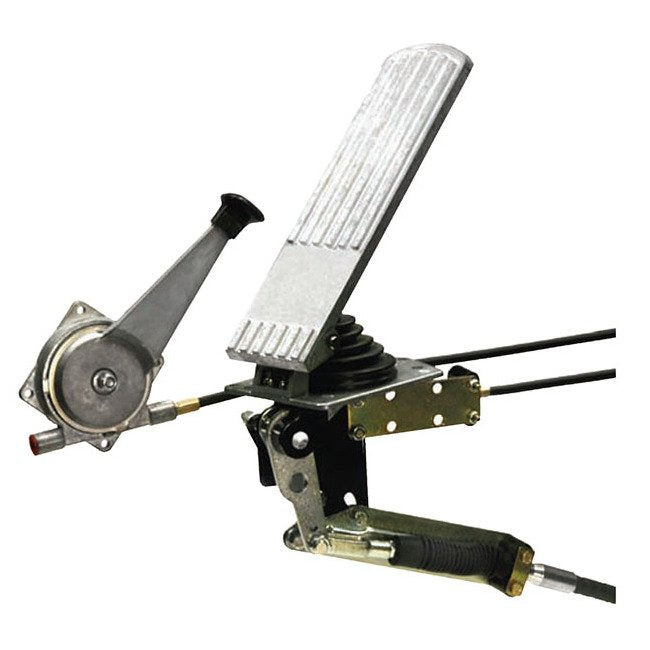

The Heavy-Duty Throttle Pedal with Spring Returned Mechanism is designed for use with two pull-only accelerator cables, offering smooth and precise control in medium & heavy-duty trucks, construction equipment, farm equipment, and buses. With die-cast & steel components, corrosion-resistant coatings, and adjustable features, this pedal ensures durability and reliability in wide temperature ranges (-25 to 160 ºF). Its fast and economical installation process simplifies setup, making it ideal for various applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Applications 0
Medium & heavy-duty trucksConstruction equipmentFarm equipmentBuses
Fast And Economical Installation 0
A throttle cable simplifies the installation, providing a complete system to suit many applications.The pedal tower mechanism is designed to be dropped through the floor and secured. Cable attachment can then be quickly and easily completed.
Features 0
Die cast & steel componentsMultiple base bolt patternsSpring returned pedalAdjustable pedal angleThrottle cable exit is adjustableTravel: 2.00" maximum-25 ºF - 160 ºF temperature range (-14 ºF - 90 ºF)Corrosion-resistant die cast components, plated steel hardware and plastic bushings
Material 0
Coated sheet metalPlastic bushingsPlastic boot plated steel hardware
Specifications Maximum Travel Length
2.00 "
Specifications Note

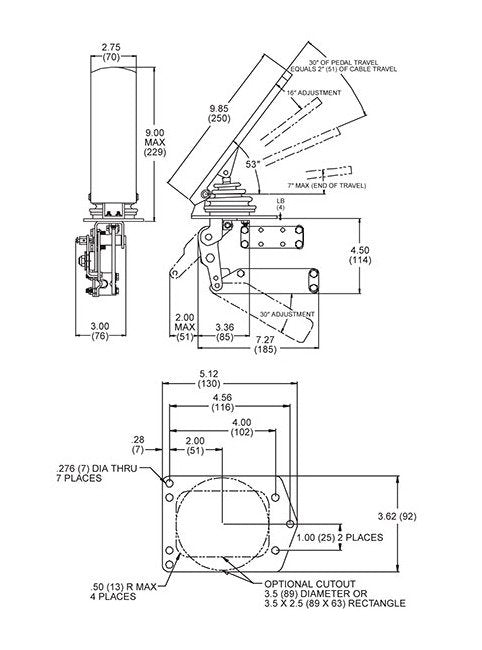

All line art dimensions are represented as follows: in (mm)
Specifications Suggested End Fittings
Clevis and pin, or end fitting with right angle bend
Specifications Temperature Range
-25 to 160 ºF | -14 to 90 ºC
CAGE
0T9L4
NAICS
332999
PSC
5340
