Heavy-Duty Top Running Motor Driven Cranes
Heavy-Duty Top Running Motor Driven Cranes
SKU:REL-353098
Explore our Heavy-Duty Motor Driven Cranes for reliable indoor and outdoor lifting operations. Compliant with industry standards.
Regular price
$8,999.99
Regular price
Sale price
$8,999.99
Unit price
per
Initiate Order
Heavy-Duty Top Running Motor Driven Cranes
$8,999.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Top Running Motor Driven Cranes
$8,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

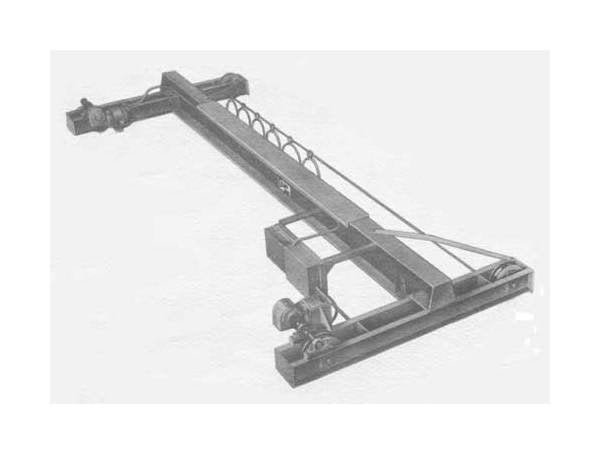

Our Heavy-Duty Top Running Motor Driven Cranes are engineered for extreme conditions, offering a reliable lifting solution for indoor and outdoor use. With a 2-ton capacity, 15-foot span, and sturdy 10-inch girder size, these cranes deliver exceptional performance. Featuring motor-driven operation, precise controls, and robust construction, they ensure efficient and safe lifting operations. Compliant with industry standards, these cranes are ideal for a wide range of applications in both industrial and institutional settings.
Product Specifications
Specifications 0
Runway Collectors
Specifications Bridge Conductors
Bare Copper Wire | Safety Enclosed
Specifications Capacity
2 Tons
Specifications Crane
Hand Geared | Motor Driven | Push Type
Specifications Crane Weight
1375 lbs.

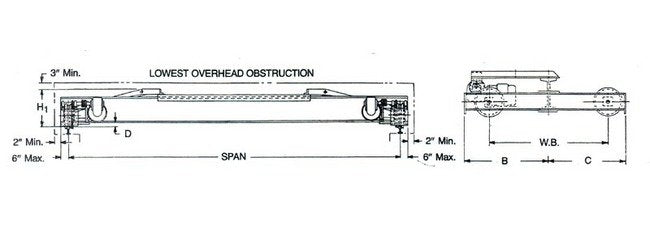

Specifications Dimensional Drawing
Dimensional Drawing for Model RPM Low Headroom Monorail Hoists / Top Running Single Girder Motor Driven Cranes
Specifications Dimension B
3'-1"
Specifications Dimension C
2'-11"
Specifications Dimension D
1/4 inches
Specifications Dimension H1
13 inches
Specifications Electric
&nbps;
Specifications Girder Size
10 inches
Specifications Hoist Headroom
Hand Chain | Low Headroom | Standard Headroom
Specifications Runway Rail
40# A.S.C.E.
Specifications Span
15'-0"
Specifications Trolley
Hand Geared | Motor Driven | Push Type
Specifications Type
Top Running | Underhung | Single Girder
Specifications Usage
Extreme Conditions | Indoor Use | Outdoor Use
Specifications Wheel Base
5'-0"
Specifications Wheel Diameter
6 inches
Specifications Wheel Load Per Wheel
2650 lbs.
