Heavy Duty Top Running Motor Driven End Truck Kit - 5 Ton Capacity
$1,899.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Top Running Motor Driven End Truck Kit - 5 Ton Capacity
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your overhead crane system with this heavy-duty Top Running Motor Driven End Truck Kit designed for reliable performance. Featuring precision oil bath lubricated gearing and mechanical braking, this kit ensures smooth deceleration and stopping, meeting all OSHA requirements. The alloy carbon steel precision machine-cut gears with self-aligning lubricated and sealed ball bearing pillow blocks provide long life and quiet operation. Fabricated from heavy steel channel shapes, the end truck frames offer sturdiness and accurate wheel alignment for Tru-Rolling truck operation. With precision-machined Tru-Tred wheels and heavy-duty long-life roller bearings, this kit is engineered to meet demanding service requirements.
Product Specifications
Kit Contents 0
Precision Machine Cut Steel Gears
Specifications Capacity
5 Tons
Specifications Crane Wheel Diameter
8 inches

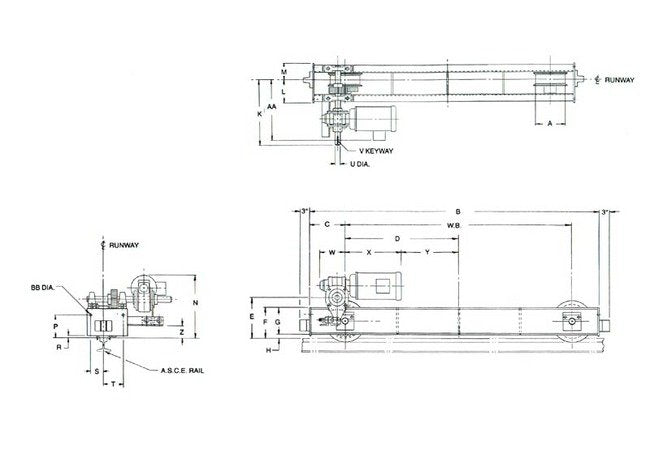

Specifications Dimension A
8 inches
Specifications Dimension Aa
14 7/8 inches
Specifications Dimension B
7'-2"
Specifications Dimension Bb
9/16 inches
Specifications Dimension C
8 inches
Specifications Dimension D
3'-0"
Specifications Dimension E
8 15/16 inches
Specifications Dimension F
6 3/4 inches
Specifications Dimension G
6 inches
Specifications Dimension H
3/4 inches
Specifications Dimension L
5 3/4 inches
Specifications Dimension M
4 inches
Specifications Dimension N
15 1/4 inches
Specifications Dimension P
5 1/4 inches
Specifications Dimension R
1/2 inches
Specifications Dimension S
3 1/8 inches
Specifications Dimension T
4 7/8 inches
Specifications Dimension U
1 inches
Specifications Dimension V
1/4 x 1/8 inches
Specifications Dimension W
5 inches
Specifications Dimension X
13 3/16 inches
Specifications Dimension Y
22 13/16 inches
Specifications Dimension Z
2 7/8 inches
Specifications Maximum Asce Runway Rail
40#
Specifications Max Wheel Load Per Wheel
7500 lbs.
Specifications Net Weight Per Pair
800 lbs.
Specifications Optional Equipment
Controls - Single or two speed | Bumpers - Rubber or spring type | Shorter wheel base | Spark resistant models
Specifications Wheel Base
6'-0"
Standard Features 0
Drives : Single and dual motor design with precision oil bath lubricated gearing and mechanical braking for smooth deceleration and final stop. Standard "Rightway" 230/460V-3P-60Hz drive motors are connected to precision oil bath lubricated gear reducers. The Mechanical Braking meets all OSHA requirements for crane deceleration and stopping.Gearing : Alloy carbon steel precision machine cut, sized and proportioned with large pitch diameter pinion gears having generous face width for long life and quiet operation. Pinion gears are supported between self-aligning lubricated and sealed ball bearing pillow blocks - no overhung gearing..End Truck Frames : Fabricated from heavy steel channel shapes interconnected with diaphragms and end plates to form a sturdy jig welded box. Heavy steel axle reinforcement bosses are welded to main frame then line bored to insure accurate wheel alignment for Tru-Rolling truck operation. Neoprene rubber bumpers are available as accessory equipment for cushioned contact with runway end stops..Tru-Tred Wheels : Precision machined from alloy steel double flanged to meet the most demanding service requirements..Wheel Bearings : Heavy duty long life rated roller bearings rotating on high carbon alloy steel hardened and ground axles with pressure grease lubrication.
