Heavy Duty Top Running Motor Driven End Truck Kits - 10 Tons Capacity
Heavy Duty Top Running Motor Driven End Truck Kits - 10 Tons Capacity
SKU:REL-5fce99
Top Running Motor Driven End Truck Kits - Heavy Duty, 10 Tons Capacity, OSHA Compliant
Regular price
$2,999.99
Regular price
Sale price
$2,999.99
Unit price
per
Initiate Order
Heavy Duty Top Running Motor Driven End Truck Kits - 10 Tons Capacity
$2,999.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Top Running Motor Driven End Truck Kits - 10 Tons Capacity
$2,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

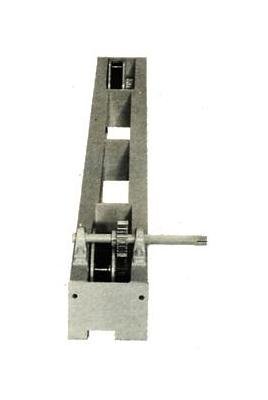

Our Heavy Duty Top Running Motor Driven End Truck Kits offer a reliable solution for overhead cranes with capacities ranging from 2 to 10 tons. Featuring precision oil bath lubricated gearing, mechanical braking, alloy carbon steel precision-cut gears, and sturdy steel frame construction, these kits ensure smooth deceleration and precise stops. With a wheel load capacity of 14,000 lbs per wheel and compliance with OSHA requirements for crane deceleration and stopping, these kits are built for durability and performance. Ideal for industrial applications requiring heavy-duty overhead crane components.
Product Specifications
Kit Contents 0
Heavy Duty Wheel Roller Bearings
Specifications Capacity
10 Tons
Specifications Crane Wheel Diameter
10 inches

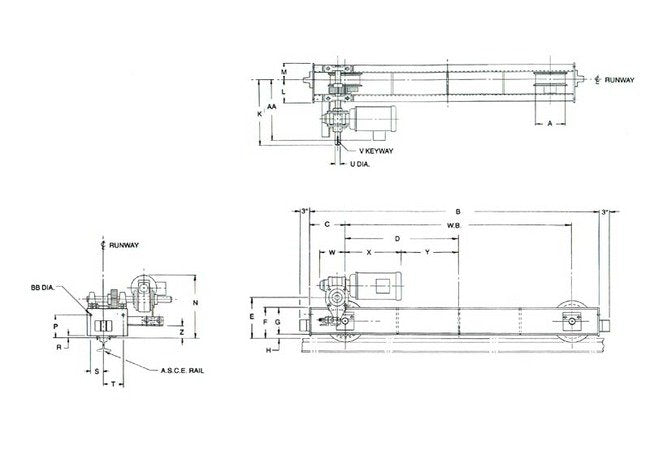

Specifications Dimension A
10 inches
Specifications Dimension B
7'-6"
Specifications Dimension Bb
11/16 inches
Specifications Dimension C
11 inches
Specifications Dimension D
3'-0"
Specifications Dimension E
11 1/16 inches
Specifications Dimension F
8 7/8 inches
Specifications Dimension G
8 inches
Specifications Dimension H
7/8 inches
Specifications Dimension K
17 3/8 inches
Specifications Dimension L
6 inches
Specifications Dimension M
4 1/4 inches
Specifications Dimension N
12 5/16 inches
Specifications Dimension P
6 7/8 inches
Specifications Dimension R
1/2 inches
Specifications Dimension S
3 1/8 inches
Specifications Dimension T
5 1/8 inches
Specifications Dimension U
1 1/4 inches
Specifications Dimension V
1/4 x 1/8 inches
Specifications Gear Ratio
1.96:1
Specifications Maximum Asce Runway Rail
40#
Specifications Max Wheel Load Per Wheel
14000 lbs.
Specifications Net Weight Per Pair
1000 lbs.
Specifications Optional Equipment
Controls - Single or two speed | Bumpers - Rubber or spring type | Shorter wheel base | Spark resistant models
Specifications Wheel Base
6'-0"
Standard Features 0

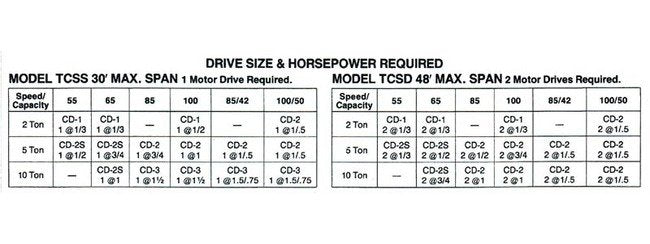

Drives : Single and dual motor design with precision oil bath lubricated gearing and mechanical braking for smooth deceleration and final stop. Standard "Rightway" 230/460V-3P-60Hz drive motors are connected to precision oil bath lubricated gear reducers. The Mechanical Braking meets all OSHA requirements for crane deceleration and stopping.Gearing : Alloy carbon steel precision machine cut, sized and proportioned with large pitch diameter pinion gears having generous face width for long life and quiet operation. Pinion gears are supported between self-aligning lubricated and sealed ball bearing pillow blocks - no overhung gearing..End Truck Frames : Fabricated from heavy steel channel shapes interconnected with diaphragms and end plates to form a sturdy jig welded box. Heavy steel axle reinforcement bosses are welded to main frame then line bored to insure accurate wheel alignment for Tru-Rolling truck operation. Neoprene rubber bumpers are available as accessory equipment for cushioned contact with runway end stops..Tru-Tred Wheels : Precision machined from alloy steel double flanged to meet the most demanding service requirements..Wheel Bearings : Heavy duty long life rated roller bearings rotating on high carbon alloy steel hardened and ground axles with pressure grease lubrication.
