Heavy Duty Top Running Single Girder Crane
Heavy Duty Top Running Single Girder Crane
SKU:REL-68e402
Heavy Duty 5-ton crane for extreme conditions with motor-driven efficiency & industry certifications.
Regular price
$7,500.00
Regular price
Sale price
$7,500.00
Unit price
per
Initiate Order
Heavy Duty Top Running Single Girder Crane
$7,500.00
Quantity: 1
Claim Your Seller Account
Heavy Duty Top Running Single Girder Crane
$7,500.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

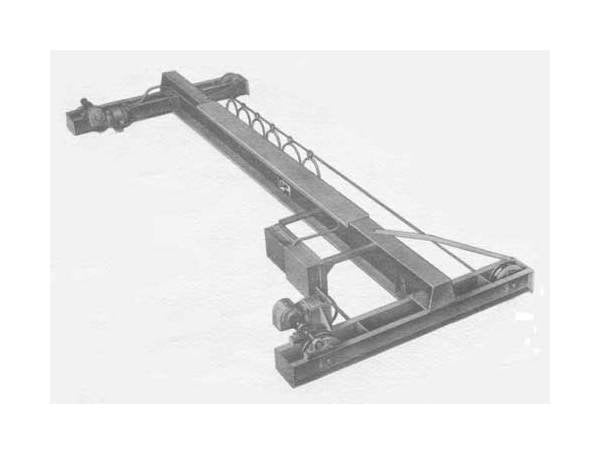

The Heavy Duty Top Running Single Girder Crane is designed for extreme conditions, offering a capacity of 5 tons and a span of 22'-6". With a sturdy 16-inch C girder size and a compact dimension, this crane is suitable for both indoor and outdoor use. Its motor-driven and push type features ensure efficient operation while meeting industry-specific certifications and safety standards.
Product Specifications
Specifications 0
Runway Collectors
Specifications Bridge Conductors
Bare Copper Wire | Safety Enclosed
Specifications Capacity
5 Tons
Specifications Crane
Hand Geared | Motor Driven | Push Type
Specifications Crane Weight
2525 lbs.
Specifications Dimensional Drawing

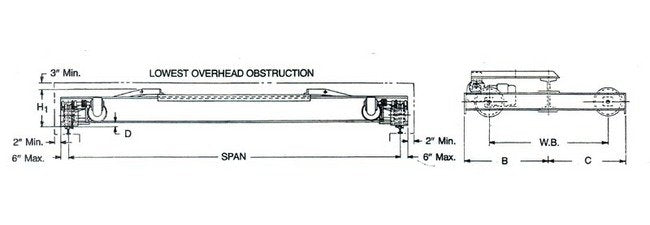

Dimensional Drawing for Model RPM Low Headroom Monorail Hoists / Top Running Single Girder Motor Driven Cranes
Specifications Dimension B
3'-2"
Specifications Dimension C
3'-0"
Specifications Dimension D
3/4 inches
Specifications Dimension H1
19 inches
Specifications Electric
&nbps;
Specifications Girder Size
16 inches C
Specifications Hoist Headroom
Hand Chain | Low Headroom | Standard Headroom
Specifications Runway Rail
40# A.S.C.E.
Specifications Span
22'-6"
Specifications Trolley
Hand Geared | Motor Driven | Push Type
Specifications Type
Top Running | Underhung | Single Girder
Specifications Usage
Extreme Conditions | Indoor Use | Outdoor Use
Specifications Wheel Base
5'-0"
Specifications Wheel Diameter
8 inches
Specifications Wheel Load Per Wheel
6400 lbs.
