Heavy-Duty Top Running Single Girder Crane
Heavy-Duty Top Running Single Girder Crane
SKU:REL-30ea71
Robust 10-ton motor-driven crane for extreme conditions, with S18 x 54.7C girder size & exceptional stability.
Regular price
$8,999.99
Regular price
Sale price
$8,999.99
Unit price
per
Initiate Order
Heavy-Duty Top Running Single Girder Crane
$8,999.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Top Running Single Girder Crane
$8,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

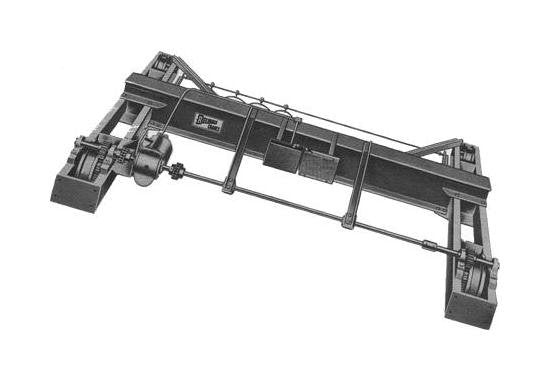

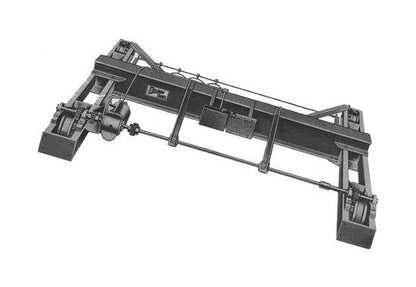

The Heavy-Duty Top Running Single Girder Crane is a robust solution designed for extreme conditions, suitable for both indoor and outdoor use. With a capacity of 10 tons and a span of 22'-6", this crane offers exceptional stability with its S18 x 54.7C girder size. The motorized Model TSS Crane features a compact design, non-slip rubber end truck bumpers, and channel capped beams for added safety. Its versatile motor-driven operation and high load-bearing capacity make it ideal for industrial applications requiring precision and durability.
Product Specifications
Specifications 0
Runway Collectors
Specifications Bridge Conductors
Bare Copper Wire | Safety Enclosed
Specifications Capacity
10 Tons
Specifications Crane
Hand Geared | Motor Driven | Push Type
Specifications Crane Weight
3835 lbs.

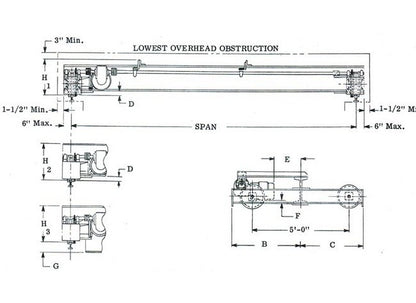

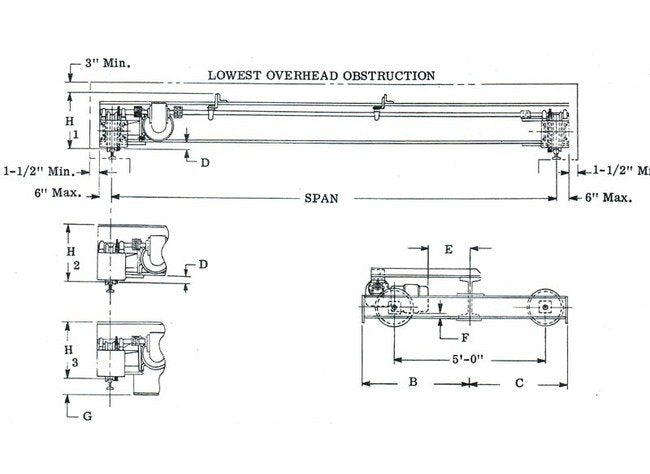

Specifications Dimension B
3'-6"
Specifications Dimension C
3'-2"
Specifications Dimension D
1 inches
Specifications Dimension E
1'-2"
Specifications Dimension F
6 inches
Specifications Dimension H1
22 inches
Specifications Dimension H2
20 inches
Specifications Dimension H3
18 inches
Specifications Electric
&nbps;
Specifications Girder Size
S18 x 54.7C
Specifications Hoist Headroom
Hand Chain | Low Headroom | Standard Headroom
Specifications Model
Model TSS Motorized Crane
Specifications Runway Rail
40# A.S.C.E.
Specifications Span
22'-6"
Specifications Trolley
Hand Geared | Motor Driven | Push Type
Specifications Type
Top Running | Underhung | Single Girder
Specifications Usage
Extreme Conditions | Indoor Use | Outdoor Use
Specifications Wheel Diameter
12 inches
Specifications Wheel Load Per Wheel
12210 lbs.
