Heavy-Duty Top Running Single Girder Cranes
Heavy-Duty Top Running Single Girder Cranes
SKU:REL-e5e6b6
Heavy-Duty 2 Ton Capacity Top Running Single Girder Cranes for reliable indoor/outdoor use.
Regular price
$6,499.99
Regular price
Sale price
$6,499.99
Unit price
per
Initiate Order
Heavy-Duty Top Running Single Girder Cranes
$6,499.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Top Running Single Girder Cranes
$6,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

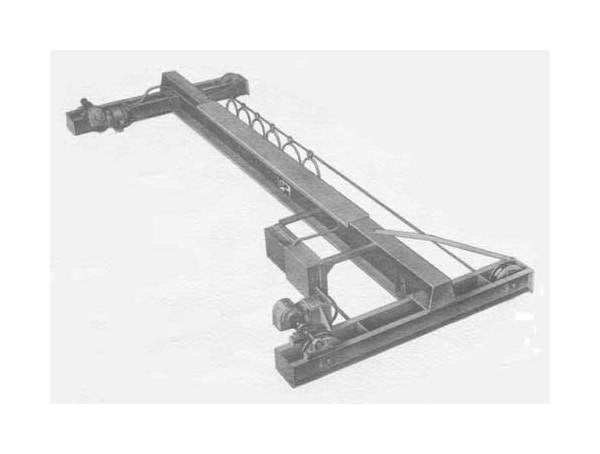

Our Heavy-Duty Top Running Single Girder Cranes are engineered for extreme conditions, offering a lifting capacity of 2 tons. With a sturdy girder size of 16 inches C and a span of 35 feet, these cranes provide reliable and efficient overhead lifting solutions. Ideal for indoor and outdoor use, they feature motor-driven trolleys and hoists for precise control. Compliant with federal procurement standards and industry certifications, these cranes meet the highest quality and safety requirements, making them a top choice for industrial applications.
Product Specifications
Specifications 0
Runway Collectors
Specifications Bridge Conductors
Bare Copper Wire | Safety Enclosed
Specifications Capacity
2 Tons
Specifications Crane
Hand Geared | Motor Driven | Push Type
Specifications Crane Weight
2925 lbs.
Specifications Dimensional Drawing

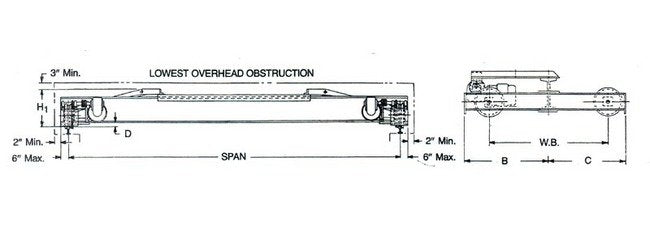

Dimensional Drawing for Model RPM Low Headroom Monorail Hoists / Top Running Single Girder Motor Driven Cranes
Specifications Dimension B
3'-1"
Specifications Dimension C
2'-11"
Specifications Dimension D
1/4 inches
Specifications Dimension H1
18 inches
Specifications Electric
&nbps;
Specifications Girder Size
16 inches C
Specifications Hoist Headroom
Hand Chain | Low Headroom | Standard Headroom
Specifications Runway Rail
40# A.S.C.E.
Specifications Span
35'-0"
Specifications Trolley
Hand Geared | Motor Driven | Push Type
Specifications Type
Top Running | Underhung | Single Girder
Specifications Usage
Extreme Conditions | Indoor Use | Outdoor Use
Specifications Wheel Base
5'-0"
Specifications Wheel Diameter
6 inches
Specifications Wheel Load Per Wheel
3025 lbs.
