Heavy-Duty Top-Running Single Girder Motorized Cranes
Heavy-Duty Top-Running Single Girder Motorized Cranes
SKU:REL-37ad78
Powerful motorized cranes for extreme conditions, indoor/outdoor use. 2-ton capacity, top-running design.
Regular price
$8,499.99
Regular price
Sale price
$8,499.99
Unit price
per
Initiate Order
Heavy-Duty Top-Running Single Girder Motorized Cranes
$8,499.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Top-Running Single Girder Motorized Cranes
$8,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

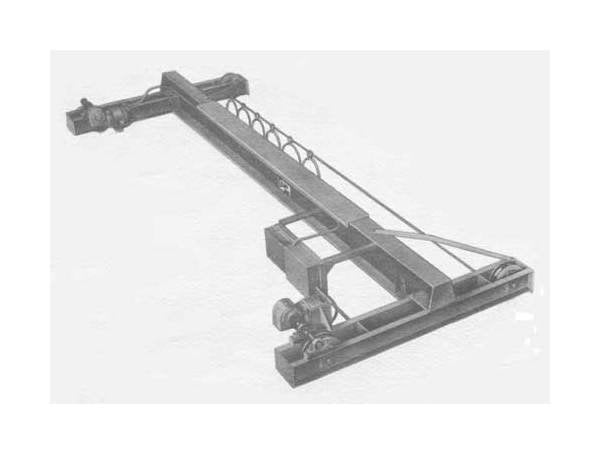

Our Heavy-Duty Top-Running Single Girder Motorized Cranes are engineered to deliver exceptional performance in extreme conditions. With a 2-ton capacity, 25'-0" span, and durable 16-inch girders, these cranes ensure efficient and reliable operations. Featuring motor-driven technology and complying with industry safety standards, these cranes are suitable for indoor and outdoor use, meeting the demands of a wide range of applications.
Product Specifications
Specifications 0
Runway Collectors
Specifications Bridge Conductors
Bare Copper Wire | Safety Enclosed
Specifications Capacity
2 Tons
Specifications Crane
Hand Geared | Motor Driven | Push Type
Specifications Crane Weight
2250 lbs.
Specifications Dimensional Drawing

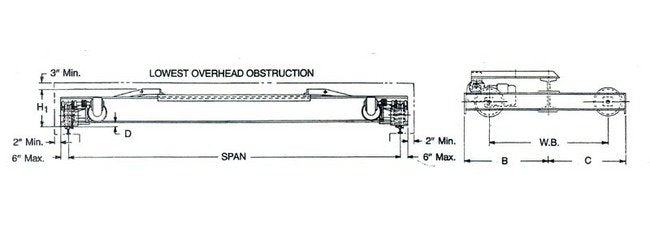

Dimensional Drawing for Model RPM Low Headroom Monorail Hoists / Top Running Single Girder Motor Driven Cranes
Specifications Dimension B
3'-1"
Specifications Dimension C
2'-11"
Specifications Dimension D
1/4 inches
Specifications Dimension H1
18 inches
Specifications Electric
&nbps;
Specifications Girder Size
16 inches
Specifications Hoist Headroom
Hand Chain | Low Headroom | Standard Headroom
Specifications Runway Rail
40# A.S.C.E.
Specifications Span
25'-0"
Specifications Trolley
Hand Geared | Motor Driven | Push Type
Specifications Type
Top Running | Underhung | Single Girder
Specifications Usage
Extreme Conditions | Indoor Use | Outdoor Use
Specifications Wheel Base
5'-0"
Specifications Wheel Diameter
6 inches
Specifications Wheel Load Per Wheel
2875 lbs.
