Heavy Duty Triple Link Chain Pulling Harness
Heavy Duty Triple Link Chain Pulling Harness
SKU:PUL-5fd7b2
Heavy Duty Triple Link Chain Pulling Harness for secure and efficient heavy-duty pulling tasks. With 3,500 lb per leg and 5,000 lb combined load capacity.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Heavy Duty Triple Link Chain Pulling Harness
$129.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Triple Link Chain Pulling Harness
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

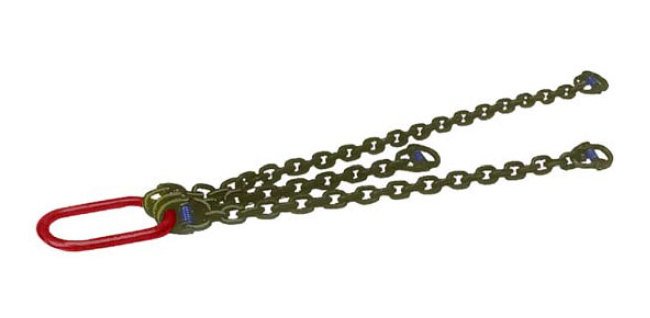

The Heavy Duty Triple Link Chain Pulling Harness is a robust and reliable solution designed for heavy-duty pulling tasks. With a working load of 3,500 lb per leg and 5,000 lb combined, this harness ensures secure and efficient pulling operations. The harness boasts a maximum width of 3.50 inches, a durable lead ring diameter of 0.50 inches, and is strategically staggered for optimal performance. Whether used in industrial settings or by government agencies, this harness offers unmatched strength and durability for demanding applications.
Product Specifications
Specifications Lead Ring Diameter C In
0.50
Specifications Lead Ring Diameter C Mm
13
Specifications Leg Diameter D In
0.31
Specifications Leg Diameter D Mm
8
Specifications Max Width A In
3.50
Specifications Max Width A Mm
89
Specifications Note
10 & 12 Way 3/8" (10 mm) harnesses only have a single stagger. All other harnesses are sequentially staggered.
Specifications Separation Between Legs B In
14
Specifications Separation Between Legs B Mm
356
Specifications Working Load Combined Lb
5000
Specifications Working Load Combined N
22240
Specifications Working Load Per Leg Lb
3500
Specifications Working Load Per Leg N
15568
