Heavy-Duty Turnbuckle Take-Up Assemblies
Heavy-Duty Turnbuckle Take-Up Assemblies
SKU:RIG-59be13
Enhance your winching operations with our Heavy-Duty Turnbuckle Assemblies, offering robust 12000 lbs. capacity and versatile control options.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Heavy-Duty Turnbuckle Take-Up Assemblies
$499.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Turnbuckle Take-Up Assemblies
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience exceptional strength and reliability with our Heavy-Duty Turnbuckle Take-Up Assemblies. With a robust capacity of 12000 lbs. and crafted to accommodate a 3/4 inches wire rope diameter, these assemblies are designed for demanding applications. Featuring precise dimensions for seamless integration and ratchet take-up functionality of 32 inches, these assemblies are ideal for electrical brake requirements, lifting, and pulling tasks. Control options include a lever drum mounted at the winch and a magnetic remote pushbutton. Mounting versatility allows for horizontal base, inverted ceiling, or vertical placement, catering to various setups with ease.
Product Specifications
Specifications Capacity
12000 lbs.
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton

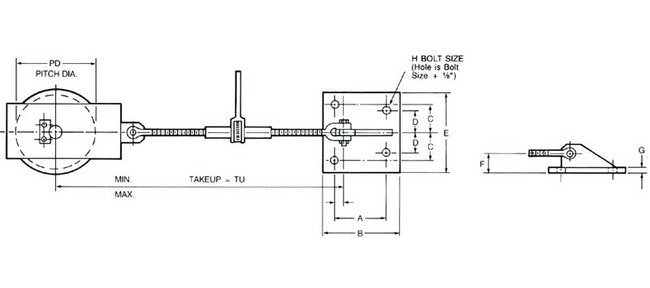

Specifications Dimension A
10 inches
Specifications Dimension B
13 1/2 inches
Specifications Dimension C
5 inches
Specifications Dimension D
3 inches
Specifications Dimension E
13 1/2 inches
Specifications Dimension F
4 1/2 inches
Specifications Dimension G
1 inches
Specifications Dimension H
1 1/8 inches
Specifications Max Size
97
Specifications Min Size
65
Specifications Model
TTA
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Pitch Diameter
15 inches
Specifications Ratchet Takeup
32 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Diameter
3/4 inches
