Heavy-Duty Turnbuckle Take-Up Assemblies
Heavy-Duty Turnbuckle Take-Up Assemblies
SKU:RIG-b7efdc
Enhance lifting and pulling tasks with our Heavy-Duty Turnbuckle Assemblies, supporting up to 25000 lbs. Find control and efficiency in industrial operations.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Heavy-Duty Turnbuckle Take-Up Assemblies
$349.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Turnbuckle Take-Up Assemblies
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience superior load-bearing capacity with our Heavy-Duty Turnbuckle Take-Up Assemblies, designed to handle up to 25000 lbs. Crafted with a robust 1-inch wire rope diameter and precise dimensions for optimal performance. Equipped with ratchet take-up of 30 inches and versatile mounting options, these assemblies are ideal for lifting, pulling, and controlled operations. With lever drum and magnetic remote pushbutton controls, this assembly ensures ease of use and safety compliance in various industrial applications.
Product Specifications
Specifications Capacity
25000 lbs.
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton

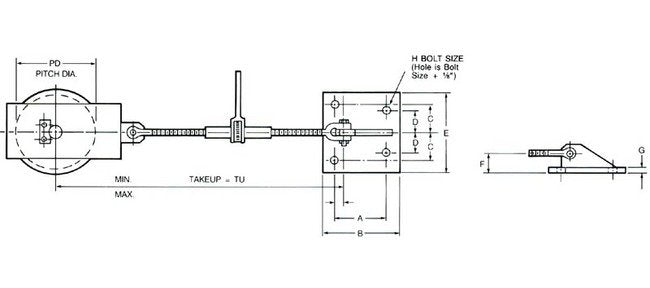

Specifications Dimension A
15 inches
Specifications Dimension B
19 inches
Specifications Dimension C
7 inches
Specifications Dimension D
3 inches
Specifications Dimension E
19 inches
Specifications Dimension F
5 inches
Specifications Dimension G
1 1/2 inches
Specifications Dimension H
1 3/4 inches
Specifications Max Size
105
Specifications Min Size
75
Specifications Model
TTA
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Pitch Diameter
20 inches
Specifications Ratchet Takeup
30 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Diameter
1 inches
