Heavy Duty Turnbuckle Take-Up Assemblies
Heavy Duty Turnbuckle Take-Up Assemblies
SKU:RIG-dfd1ee
High capacity, precise dimensions, and reliable ratchet takeup for electric winches. Ideal for lifting and pulling applications.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Heavy Duty Turnbuckle Take-Up Assemblies
$289.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Turnbuckle Take-Up Assemblies
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Our Heavy Duty Turnbuckle Take-Up Assemblies are designed for robust lifting and pulling applications, with a high capacity of 10000 lbs. Featuring a 5/8 inches wire rope diameter and precise dimensions, these assemblies offer safe and efficient ratchet takeup of 32 inches. Built for durability and reliability, they are ideal for use in scenarios requiring electrical brake, lifting, and pulling capabilities. With versatile mounting options and user-friendly controls, these assemblies are a must-have accessory for electric winches that demand top performance.

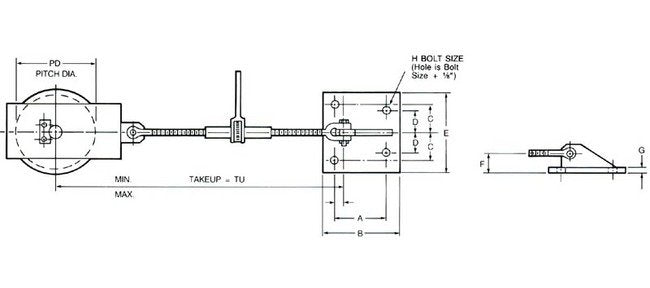

Product Specifications
Specifications Capacity
10000 lbs.
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Dimension A
10 inches
Specifications Dimension B
13 1/4 inches
Specifications Dimension C
4 1/2 inches
Specifications Dimension D
3 inches
Specifications Dimension E
12 1/4 inches
Specifications Dimension F
4 1/4 inches
Specifications Dimension G
1 inches
Specifications Dimension H
1 1/8 inches
Specifications Max Size
95
Specifications Min Size
63
Specifications Model
TTA
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Pitch Diameter
12 1/2 inches
Specifications Ratchet Takeup
32 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Diameter
5/8 inches
