Heavy-Duty Turnbuckle Take-Up Assemblies
Heavy-Duty Turnbuckle Take-Up Assemblies
SKU:RIG-cde56a
Heavy-Duty Turnbuckle Take-Up Assemblies for secure lifting and pulling tasks. Features high capacity, multiple mounting options, safety brake, and convenient controls.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Heavy-Duty Turnbuckle Take-Up Assemblies
$289.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Turnbuckle Take-Up Assemblies
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy-Duty Turnbuckle Take-Up Assemblies, model TTA, are robust solutions designed for heavy-duty lifting, pulling, and load securing tasks. With a high capacity of 2000 lbs. and dimensions tailored for optimal performance, these assemblies feature a 5/16 inches wire rope diameter, 34 inches ratchet take-up, and versatile mounting options including horizontal base, inverted ceiling, and vertical orientation. Equipped with an electrical brake for safety, controls include a lever drum mounted at the winch and a magnetic remote pushbutton for convenient operation. These assemblies are ideal for industrial applications requiring reliability, strength, and precision.
Product Specifications
Specifications Capacity
2000 lbs.
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton

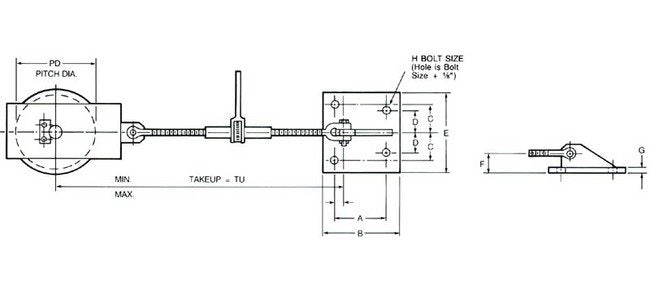

Specifications Dimension A
10 inches
Specifications Dimension B
12 1/2 inches
Specifications Dimension C
3 1/2 inches
Specifications Dimension D
3 inches
Specifications Dimension E
9 1/2 inches
Specifications Dimension F
3 1/2 inches
Specifications Dimension G
5/8 inches
Specifications Dimension H
3/4 inches
Specifications Max Size
86
Specifications Min Size
52
Specifications Model
TTA
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Pitch Diameter
5 inches
Specifications Ratchet Takeup
34 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Diameter
5/16 inches
