Heavy Duty Type E Piloted Flange Mounted Unit - 1 7/8 inch Shaft Size

Name: Heavy Duty Type E Piloted Flange Mounted Unit - 1 7/8 inch Shaft Size
Brand: Emerson Bearing
SKU: MOU-c60441
Price: 129.99 USD
Availability: OutOfStock

SKU:MOU-c60441

Efficiently handle high radial & thrust loads with Heavy Duty Type E Piloted Flange Unit for 1 7/8" shaft. Ensures secure locking & effective sealing against contaminants.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Heavy Duty Type E Piloted Flange Mounted Unit is designed to handle high radial and thrust loads efficiently, ensuring ease of installation and secure shaft locking. Equipped with Timken tapered roller bearings and factory-installed labyrinth seals, this unit effectively seals against lubricant loss while preventing dust and dirt ingress. With precise dimensions and a sturdy build, this unit is a reliable choice for industrial settings. Only available in Non-Expansion type.

Product Specifications

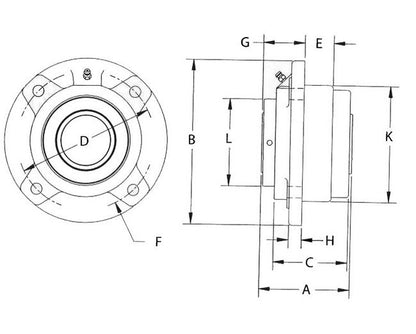

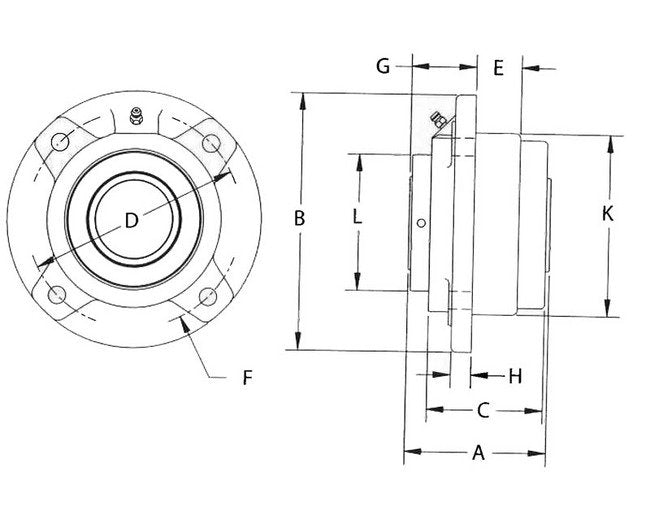

Specifications A Dimension

3-1/2 in

Specifications Browning Pn

FBE920-19331114

Specifications B Dimension

6-3/8 in

Specifications C Dimension

2-29/32 in

Specifications Dodge Pn

F4BE-19331114

Specifications D Dimension

5-3/8 in

Specifications E Dimension

1-3/16 in

Specifications F Dimension

7/16 in

Specifications G Dimension

1-9/16 in

Specifications Hub City Pn

EFB4-19331114

Specifications H Dimension

9/16 in

Specifications K Dimension

4-1/2 in

Specifications L Dimension

3-7/16 in

Specifications Moline Pn

19331114

Specifications Number Of Drive Collars

Specifications Number Of Mounting Holes

Specifications Rex Pn

ZEF2000-F-19331114

Specifications Royersford Pn

20-05-0103-19331114

Specifications Sealmaster Pn

EFB-19331114

Specifications Shaft Size

1 7/8 in

Specifications Weight

9.4 lb
