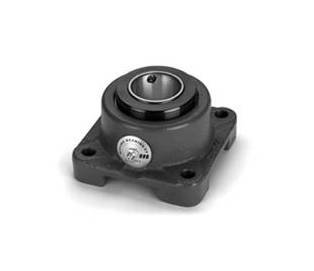

Heavy Duty Type E Piloted Flange Mounted Units - 90mm Shaft
Heavy Duty Type E Piloted Flange Mounted Units - 90mm Shaft
SKU:MOU-72f19a
Heavy Duty Type E Piloted Flange Mounted Units - High load capacity, easy installation, Timken tapered roller bearings
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
Heavy Duty Type E Piloted Flange Mounted Units - 90mm Shaft
$699.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Type E Piloted Flange Mounted Units - 90mm Shaft
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

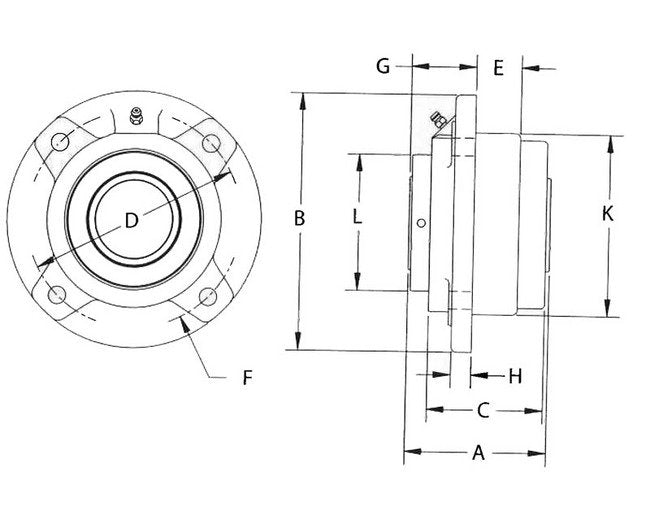

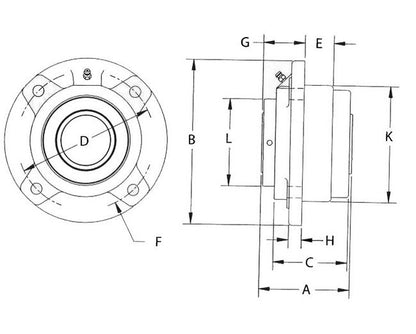

Experience superior performance with our Heavy Duty Type E Piloted Flange Mounted Units. Designed to handle high radial and thrust loads, these units ensure easy installation and secure shaft locking. Equipped with Timken tapered roller bearings and factory-installed labyrinth seals for reliable lubricant retention and protection against contaminants. With dimensions (A) 5 in, (B) 10-1/4 in, (C) 4-3/16 in, (D) 8-5/8 in, (E) 1-1/4 in, (F) 3/4 in, (G) 2-7/16 in, (H) 7/8 in, (K) 7-3/8 in, and (L) 5-7/16 in. This Non-Expansion type unit is a robust solution weighing 44 lb, with 2 drive collars and 4 mounting holes for secure installation.
Product Specifications
Specifications A Dimension
5 in
Specifications Browning Pn
FBE920-19331090
Specifications B Dimension
10-1/4 in
Specifications C Dimension
4-3/16 in
Specifications Dodge Pn
F4BE-19331090
Specifications D Dimension
8-5/8 in
Specifications E Dimension
1-1/4 in
Specifications F Dimension
3/4 in
Specifications G Dimension
2-7/16 in
Specifications Hub City Pn
EFB4-19331090
Specifications H Dimension
7/8 in
Specifications K Dimension
7-3/8 in
Specifications L Dimension
5-7/16 in
Specifications Moline Pn
19331090
Specifications Number Of Drive Collars
2
Specifications Number Of Mounting Holes
4
Specifications Rex Pn
ZEF2000-F-19331090
Specifications Royersford Pn
20-05-0103-19331090
Specifications Sealmaster Pn
EFB-19331090
Specifications Shaft Size
90 mm
Specifications Weight
44 lb
