Heavy Duty Type E Wide Slot Take Up Units
Heavy Duty Type E Wide Slot Take Up Units
SKU:MOU-dd8dbe
High-performance Heavy Duty Type E Wide Slot Take Up Units with labyrinth seals, Timken bearings, and precise dimensions for optimal shaft locking and load handling.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.


The Heavy Duty Type E Wide Slot Take Up Units are engineered to handle high radial and thrust loads with ease of installation. Featuring factory-installed labyrinth seals for effective lubricant retention and dust protection, these units come with Timken tapered roller bearings for superior performance. Designed for Non-Expansion applications, they ensure positive locking to the shaft while offering precise dimensions to fit various requirements.

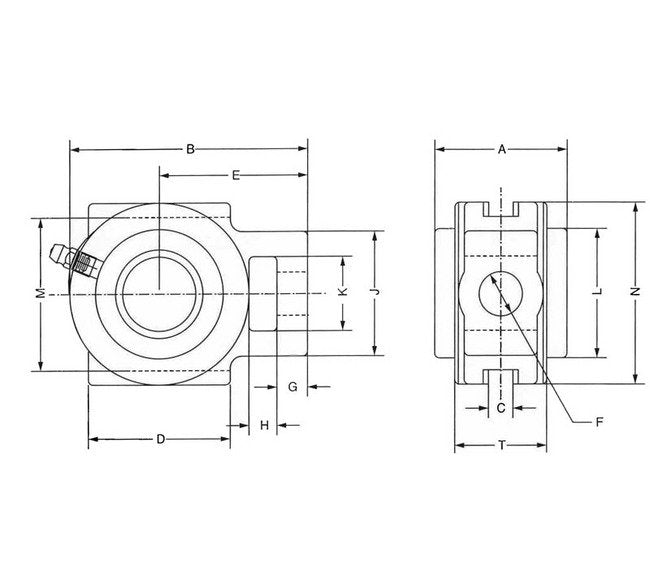

Product Specifications
Specifications A Dimension
4 in
Specifications Browning Pn
TUE920-19351060
Specifications B Dimension
7-13/16 in
Specifications C Dimension
1-1/32 in
Specifications Dodge Pn
WSTUE-19351060
Specifications D Dimension
4.5000 in
Specifications E Dimension
5-1/16 in
Specifications F Dimension
1-1/2 in
Specifications G Dimension
1-1/16 in
Specifications Hub City Pn
ETUWS-19351060
Specifications H Dimension
1-1/4 in
Specifications J Dimension
4-1/4 in
Specifications K Dimension
2-1/2 in
Specifications L Dimension
4-1/16 in
Specifications Moline Pn
19351060
Specifications M Dimension
5-1/8 in
Specifications N Dimension
6 in
Specifications Royersford Pn
20-07-0106-19351060
Specifications Sealmaster Pn
ETU-19351060
Specifications Shaft Size
60 mm
Specifications T Dimension
2 3/4 in
Specifications Weight
21 lb
