Heavy-Duty Under Running Crane End Truck Kits
Heavy-Duty Under Running Crane End Truck Kits
SKU:REL-41f5ba
Enhance your crane system with our reliable 3-ton end truck kits, compliant with top standards.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Heavy-Duty Under Running Crane End Truck Kits
$1,899.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Under Running Crane End Truck Kits
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your overhead crane system with our Heavy-Duty Under Running Crane End Truck Kits. Designed for reliability, these kits offer a 3-ton capacity with a durable construction to withstand heavy loads. Featuring a wheel load of 5500 lbs. per pair, a 1.79:1 gear ratio, and dimensions tailored for minimum size runway beams, our end truck kits ensure smooth and efficient crane operation. With compliance to Federal/DoD procurement standards and industry-certified quality, trust in our product for your crane component needs.
Ready to Grow Without Cash Flow Constraints?

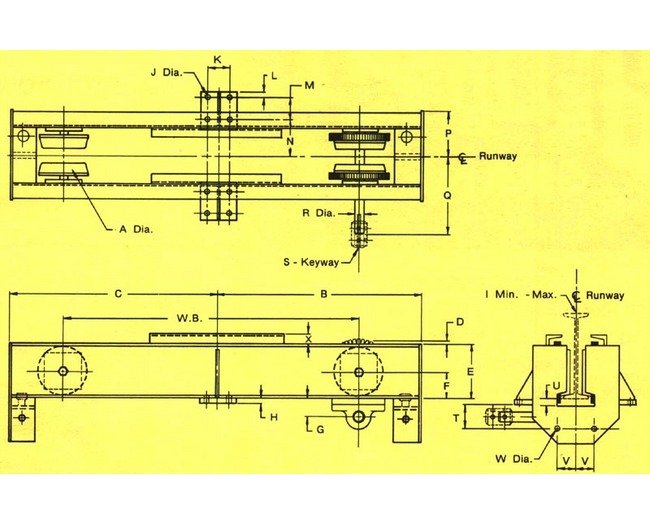

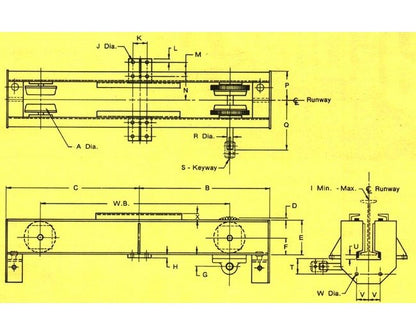

Product Specifications
Specifications Capacity
3 Tons
Specifications Dimension A
5 inches
Specifications Dimension B
3'-2"
Specifications Dimension C
3'-0"
Specifications Dimension E
6 inches
Specifications Dimension F
2 11/16 inches
Specifications Dimension G
2 3/16 inches
Specifications Dimension H
3/4 inches
Specifications Dimension I Max
S12 x 31.8
Specifications Dimension I Min
S8 x 18.4
Specifications Dimension J
11/16 inches
Specifications Dimension K
3 inches
Specifications Dimension L
3/4 inches
Specifications Dimension M
2 1/2 inches
Specifications Dimension N
4 7/8 inches
Specifications Dimension P
6 inches
Specifications Dimension Q
12 1/4 inches
Specifications Dimension R
1 1/4 inches
Specifications Dimension S
1/4 inches
Specifications Dimension T
2 1/2 inches
Specifications Dimension U
1/2 inches
Specifications Dimension V
2 1/2 inches
Specifications Dimension W
9/16 inches
Specifications Gear Ratio
1.79:1
Specifications Model
USC
Specifications Net Weight Per Pair
550 lbs.
Specifications Wheel Base
5'-0"
Specifications Wheel Load Per Pair
5500 lbs.
