Heavy-Duty Under Running Crane End Truck Kits
Heavy-Duty Under Running Crane End Truck Kits
SKU:REL-03e252
Upgrade your overhead crane with precision-engineered end truck kits for enhanced performance and durability.
Regular price
$2,599.99
Regular price
Sale price
$2,599.99
Unit price
per
Initiate Order
Heavy-Duty Under Running Crane End Truck Kits
$2,599.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Under Running Crane End Truck Kits
$2,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your overhead crane system with our Heavy-Duty Under Running Crane End Truck Kits. Designed to meet the demands of industrial applications, these kits ensure smooth movement and reliable performance. With a maximum capacity of 5 tons, these kits feature a sturdy construction, precise dimensions, and a gear ratio of 2.29:1 for efficient operation. Compliant with industry standards, these kits are ideal for upgrading or maintaining your overhead crane setup. Increase productivity and safety with our premium end truck kits.

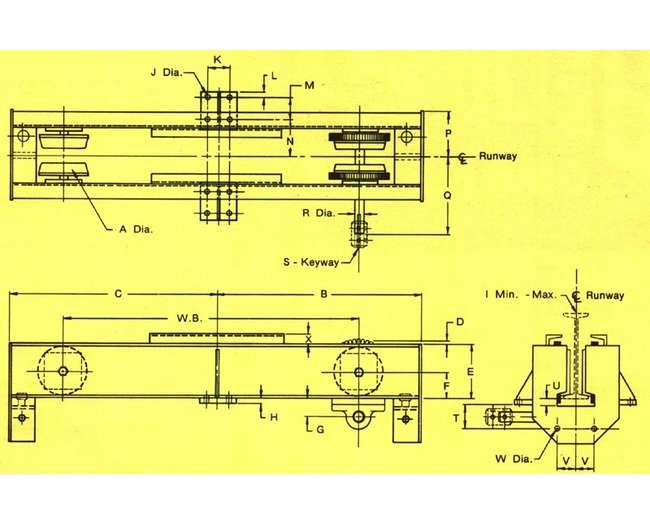

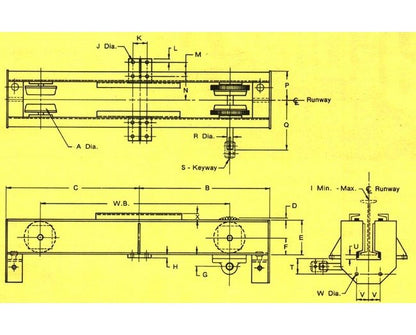

Product Specifications
Specifications Capacity
5 Tons
Specifications Dimension A
8 1/2 inches
Specifications Dimension B
4'-7"
Specifications Dimension C
4'-6"
Specifications Dimension D
3/8 inches
Specifications Dimension E
9 inches
Specifications Dimension F
4 5/16 inches
Specifications Dimension G
2 11/16 inches
Specifications Dimension H
1 1/4 inches
Specifications Dimension I Max
S18 x 54.7
Specifications Dimension I Min
S12 x 31.8
Specifications Dimension J
15/16 inches
Specifications Dimension K
3 3/4 inches
Specifications Dimension L
1 inches
Specifications Dimension M
3 1/2 inches
Specifications Dimension N
6 1/4 inches
Specifications Dimension P
8 inches
Specifications Dimension Q
14 5/8 inches
Specifications Dimension R
1 1/2 inches
Specifications Dimension S
3/8 inches
Specifications Dimension T
3 inches
Specifications Dimension U
5/8 inches
Specifications Dimension V
3 inches
Specifications Dimension W
13/16 inches
Specifications Gear Ratio
2.29:1
Specifications Model
USC
Specifications Net Weight Per Pair
1200 lbs.
Specifications Wheel Base
7'-6"
Specifications Wheel Load Per Pair
10000 lbs.
