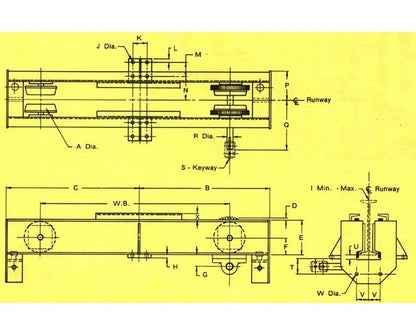

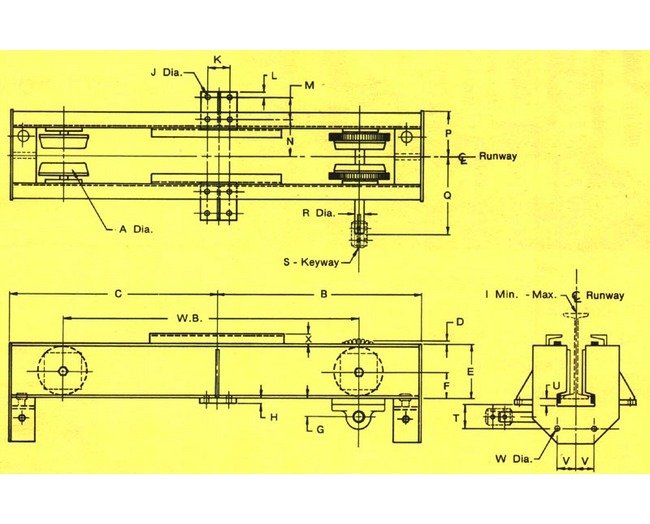

Upgrade your overhead crane system with our Heavy-Duty Under Running End Truck Kit designed for reliable performance. This kit features dimensions N, P, Q, and V suitable for minimum size runway beams, with the flexibility to accommodate larger runways by adjusting key dimensions accordingly. With a model USC, gear ratio of 1.82:1, and a wheel load capacity of 8000 lbs (per pair), this kit ensures smooth and efficient crane operations, meeting the demanding needs of industrial applications.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Specifications Capacity
5 Tons
Specifications Dimension A
6 1/2 inches
Specifications Dimension B
4'-5"
Specifications Dimension C
4'-3"
Specifications Dimension D
3/8 inches
Specifications Dimension E
7 inches
Specifications Dimension F
3 13/16 inches
Specifications Dimension G
2 3/16 inches
Specifications Dimension H
3/4 inches
Specifications Dimension I Max
S15 x 42.9
Specifications Dimension I Min
S10 x 25.4
Specifications Dimension J
15/16 inches
Specifications Dimension K
3 1/2 inches
Specifications Dimension L
7/8 inches
Specifications Dimension M
3 inches
Specifications Dimension N
5 9/16 inches
Specifications Dimension P
7 inches
Specifications Dimension Q
11 9/16 inches
Specifications Dimension R
1 1/4 inches
Specifications Dimension S
1/4 inches
Specifications Dimension T
2 1/2 inches
Specifications Dimension U
13/16 inches
Specifications Dimension V
3 inches
Specifications Dimension W
11/16 inches
Specifications Dimension X
1 1/4 inches
Specifications Gear Ratio
1.82:1
Specifications Model
USC
Specifications Net Weight Per Pair
905 lbs.
Specifications Wheel Base
7'-6"
Specifications Wheel Load Per Pair
8000 lbs.
