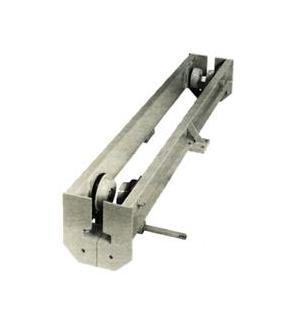

Heavy-Duty Under Running End Truck Kit for Overhead Cranes
Heavy-Duty Under Running End Truck Kit for Overhead Cranes
SKU:REL-3ca42c
Enhance crane performance with our Heavy-Duty End Truck Kit, meets Federal/DoD standards.
Regular price
$2,599.99
Regular price
Sale price
$2,599.99
Unit price
per
Initiate Order
Heavy-Duty Under Running End Truck Kit for Overhead Cranes
$2,599.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Under Running End Truck Kit for Overhead Cranes
$2,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your overhead crane system with our Heavy-Duty Under Running End Truck Kit, designed for reliable performance on varying runway beam sizes. Featuring a sturdy build with a 3-ton capacity, this kit ensures smooth operation with a wheel load of 6500 lbs per pair. With precise dimensions and a gear ratio of 1.82:1, it offers stability and efficiency. Compliant with Federal/DoD procurement standards and industry certifications, this kit is an ideal choice for industrial applications requiring top-tier quality and compliance.

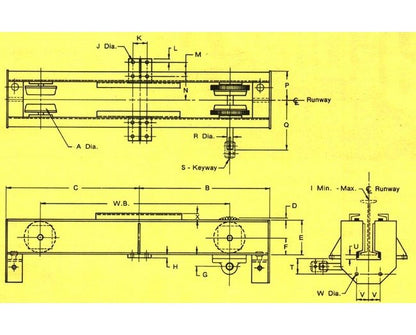

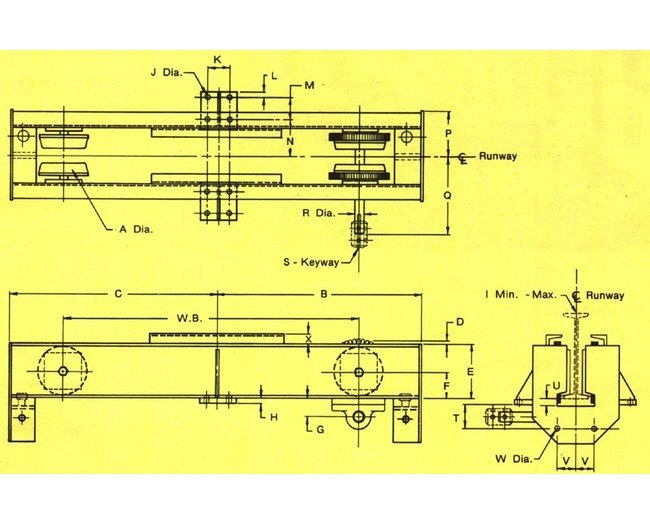

Product Specifications
Specifications Capacity
3 Tons
Specifications Dimension A
6 1/2 inches
Specifications Dimension B
4'-11"
Specifications Dimension C
4'-9"
Specifications Dimension D
7/8 inches
Specifications Dimension E
7 inches
Specifications Dimension F
3 13/16 inches
Specifications Dimension G
2 3/16 inches
Specifications Dimension H
3/4 inches
Specifications Dimension I Max
S15 x 42.9
Specifications Dimension I Min
S10 x 25.4
Specifications Dimension J
13/16 inches
Specifications Dimension K
3 1/2 inches
Specifications Dimension L
7/8 inches
Specifications Dimension M
3 inches
Specifications Dimension N
5 9/16 inches
Specifications Dimension P
7 inches
Specifications Dimension Q
11 9/16 inches
Specifications Dimension R
1 1/4 inches
Specifications Dimension S
1/4 inches
Specifications Dimension T
2 1/2 inches
Specifications Dimension U
13/16 inches
Specifications Dimension V
3 inches
Specifications Dimension W
11/16 inches
Specifications Dimension X
1 inches
Specifications Gear Ratio
1.82:1
Specifications Model
USC
Specifications Net Weight Per Pair
910 lbs.
Specifications Wheel Base
8'-6"
Specifications Wheel Load Per Pair
6500 lbs.
