Heavy-Duty Under Running End Truck Kits
Heavy-Duty Under Running End Truck Kits
SKU:REL-a34202
Enhance your crane with our Heavy-Duty End Truck Kits - reliable, durable, and efficient. Upgrade now!
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Heavy-Duty Under Running End Truck Kits
$1,899.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Under Running End Truck Kits
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

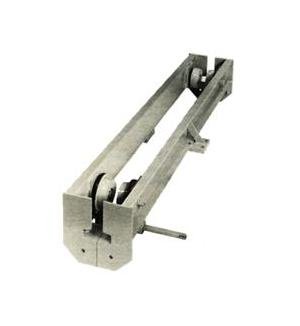

Our Heavy-Duty Under Running End Truck Kits are designed for reliable overhead crane operations. With a Model USC, these kits have a 3-ton capacity and a wheel load of 5500 lbs per pair. Featuring a robust construction with dimensions A to X meeting industry standards, these kits ensure optimal performance on runway beams of varying sizes. The gear ratio of 1.79:1 enhances efficiency, while the net weight per pair is 765 lbs. Upgrade your crane system with these high-quality kits for seamless operation and durability.

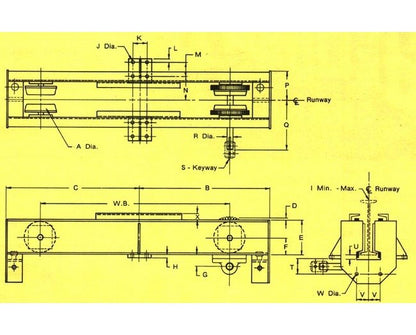

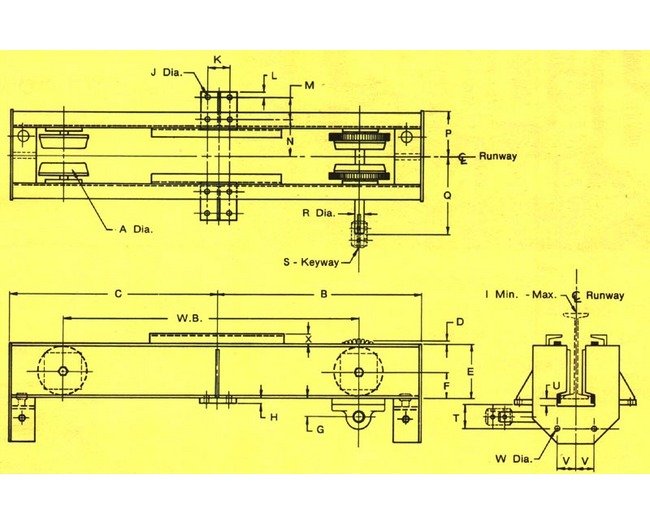

Product Specifications
Specifications Capacity
3 Tons
Specifications Dimension A
5 inches
Specifications Dimension B
4'-5"
Specifications Dimension C
4'-3"
Specifications Dimension E
6 inches
Specifications Dimension F
2 11/16 inches
Specifications Dimension G
2 3/16 inches
Specifications Dimension H
3/4 inches
Specifications Dimension I Max
S12 x 31.8
Specifications Dimension I Min
S8 x 18.4
Specifications Dimension J
11/16 inches
Specifications Dimension K
3 inches
Specifications Dimension L
3/4 inches
Specifications Dimension M
2 1/2 inches
Specifications Dimension N
4 7/8 inches
Specifications Dimension P
6 inches
Specifications Dimension Q
12 1/4 inches
Specifications Dimension R
1 1/4 inches
Specifications Dimension S
1/4 inches
Specifications Dimension T
2 1/2 inches
Specifications Dimension U
1/2 inches
Specifications Dimension V
2 1/2 inches
Specifications Dimension W
9/16 inches
Specifications Dimension X
1 inches
Specifications Gear Ratio
1.79:1
Specifications Model
USC
Specifications Net Weight Per Pair
765 lbs.
Specifications Wheel Base
7'-6"
Specifications Wheel Load Per Pair
5500 lbs.
