Heavy Duty Under Running End Truck Kits
Heavy Duty Under Running End Truck Kits
SKU:REL-7f14c2
Reliable 5-ton capacity end truck kits for overhead cranes, adjustable for various beam sizes. Ensure smooth operations with our heavy-duty kits.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
Heavy Duty Under Running End Truck Kits
$2,899.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Under Running End Truck Kits
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

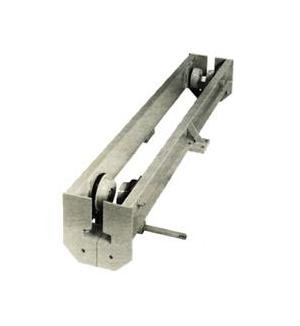

Our Heavy Duty Under Running End Truck Kits are designed for reliability and durability in overhead crane systems. With a model USC specification and a 5-ton capacity, these kits ensure smooth operation. Featuring a wheel load of 8000 lbs per pair and a compact design, these kits are suitable for beams ranging from S10 x 25.4 to S15 x 42.9. The gear ratio of 1.82:1 ensures efficient performance, while the net weight of 790 lbs per pair makes installation and maintenance easier. For larger runways, simple adjustments can be made to accommodate different beam sizes. Invest in quality and efficiency with our Heavy Duty Under Running End Truck Kits.

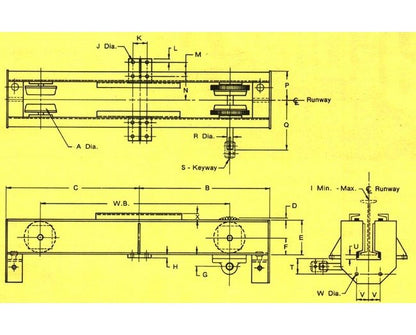

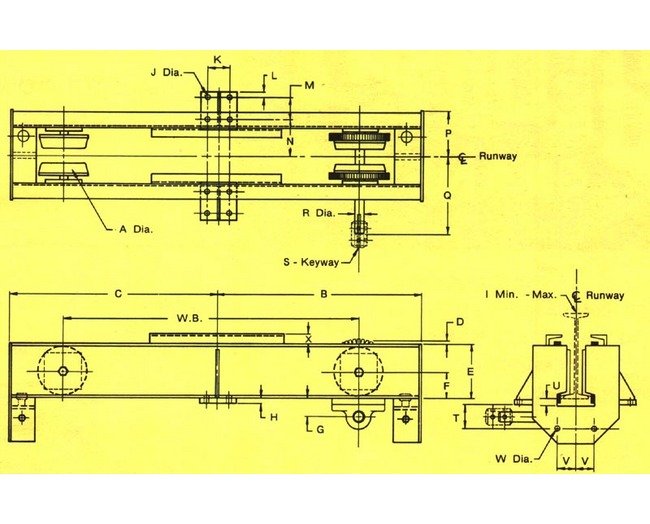

Product Specifications
Specifications Capacity
5 Tons
Specifications Dimension A
6 1/2 inches
Specifications Dimension B
3'-8"
Specifications Dimension C
3'-6"
Specifications Dimension D
7/8 inches
Specifications Dimension E
7 inches
Specifications Dimension F
3 13/16 inches
Specifications Dimension G
2 3/16 inches
Specifications Dimension H
3/4 inches
Specifications Dimension I Max
S15 x 42.9
Specifications Dimension I Min
S10 x 25.4
Specifications Dimension J
15/16 inches
Specifications Dimension K
3 1/2 inches
Specifications Dimension L
7/8 inches
Specifications Dimension M
3 inches
Specifications Dimension N
5 9/16 inches
Specifications Dimension P
7 inches
Specifications Dimension Q
11 9/16 inches
Specifications Dimension R
1 1/4 inches
Specifications Dimension S
1/4 inches
Specifications Dimension T
2 1/2 inches
Specifications Dimension U
13/16 inches
Specifications Dimension V
3 inches
Specifications Dimension W
11/16 inches
Specifications Dimension X
1/4 inches
Specifications Gear Ratio
1.82:1
Specifications Model
USC
Specifications Net Weight Per Pair
790 lbs.
Specifications Wheel Base
6'-0"
Specifications Wheel Load Per Pair
8000 lbs.
