Heavy-Duty Under Running End Truck Kits
Heavy-Duty Under Running End Truck Kits
SKU:REL-0c6f92
Heavy-Duty Under Running End Truck Kits for smooth, stable crane operation with 5-ton capacity & high wheel load. Designed for reliability & performance.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Heavy-Duty Under Running End Truck Kits
$1,899.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Under Running End Truck Kits
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

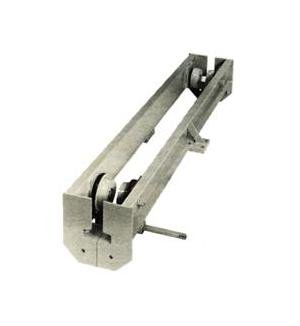

The Heavy-Duty Under Running End Truck Kits are designed for reliable overhead crane systems, offering a robust Model USC with a 5-ton capacity. With a high wheel load of 8000 lbs. per pair and a sturdy Wheel Base of 5'-0", these kits ensure smooth and stable crane operation. The precise dimensions from A to V meet minimum size runway beam requirements, and the gear ratio of 1.82:1 enhances efficiency. With a net weight of 650 lbs. per pair, these kits provide durability and performance, making them ideal for industrial settings.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Capacity
5 Tons

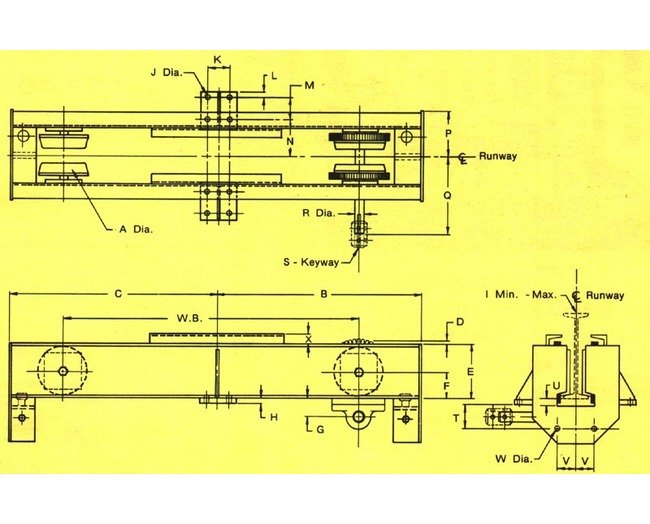

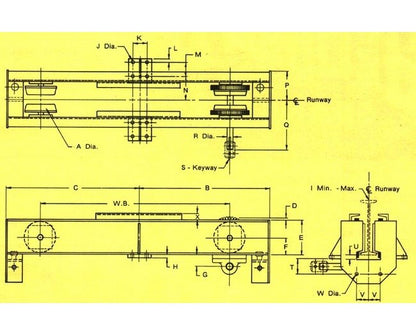

Specifications Dimension A
6 1/2 inches
Specifications Dimension B
3'-2"
Specifications Dimension C
3'-0"
Specifications Dimension D
7/8 inches
Specifications Dimension E
7 inches
Specifications Dimension F
3 13/16 inches
Specifications Dimension G
2 3/16 inches
Specifications Dimension H
3/4 inches
Specifications Dimension I Max
S15 x 42.9
Specifications Dimension I Min
S10 x 25.4
Specifications Dimension J
13/16 inches
Specifications Dimension K
3 1/2 inches
Specifications Dimension L
7/8 inches
Specifications Dimension M
3 inches
Specifications Dimension N
5 9/16 inches
Specifications Dimension P
7 inches
Specifications Dimension Q
11 9/16 inches
Specifications Dimension R
1 1/4 inches
Specifications Dimension S
1/4 inches
Specifications Dimension T
2 1/2 inches
Specifications Dimension U
13/16 inches
Specifications Dimension V
3 inches
Specifications Dimension W
11/16 inches
Specifications Gear Ratio
1.82:1
Specifications Model
USC
Specifications Net Weight Per Pair
650 lbs.
Specifications Wheel Base
5'-0"
Specifications Wheel Load Per Pair
8000 lbs.
