Heavy-Duty Under Running End Truck Kits
Heavy-Duty Under Running End Truck Kits
SKU:REL-011b51
Upgrade your crane system with our high-capacity Under Running End Truck Kits for maximum safety and efficiency on your runway beams.
Regular price
$2,999.99
Regular price
Sale price
$2,999.99
Unit price
per
Initiate Order
Heavy-Duty Under Running End Truck Kits
$2,999.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Under Running End Truck Kits
$2,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

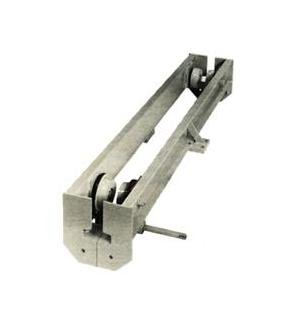

Enhance your overhead crane system with our Heavy-Duty Under Running End Truck Kits designed for optimal performance and durability. With a 2-ton capacity and a wheel load of 4500 lbs. per pair, these kits ensure reliable operation and safety on your runway beams. The precise dimensions and gear ratio of 1.79:1 provide efficiency and smooth movement. From Dimension A to V, each component is engineered for strength and stability, meeting rigorous industry standards for seamless integration into your crane system.
Ready to Grow Without Cash Flow Constraints?

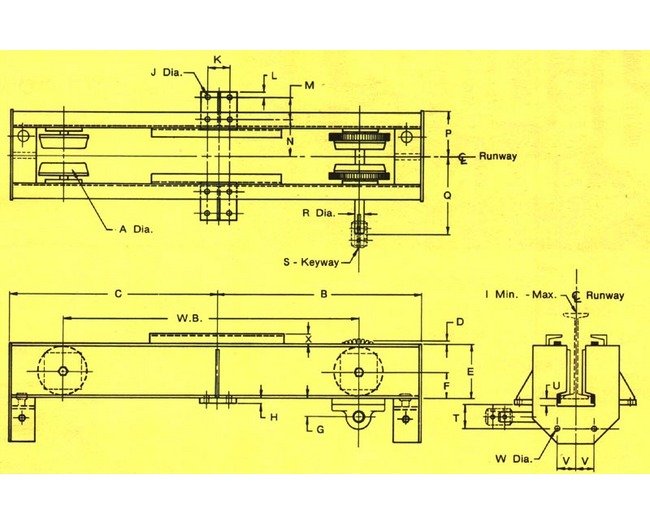

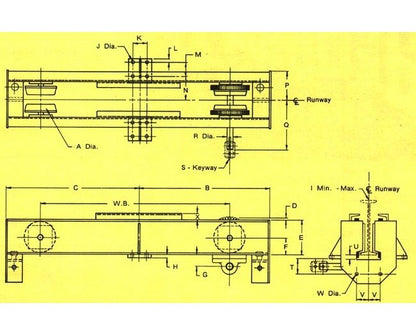

Product Specifications
Specifications Capacity
2 Tons
Specifications Dimension A
5 inches
Specifications Dimension B
3'-8"
Specifications Dimension C
3'-6"
Specifications Dimension E
6 inches
Specifications Dimension F
2 11/16 inches
Specifications Dimension G
2 3/16 inches
Specifications Dimension H
3/4 inches
Specifications Dimension I Max
S12 x 31.8
Specifications Dimension I Min
S8 x 18.4
Specifications Dimension J
11/16 inches
Specifications Dimension K
3 inches
Specifications Dimension L
3/4 inches
Specifications Dimension M
2 1/2 inches
Specifications Dimension N
4 7/8 inches
Specifications Dimension P
6 inches
Specifications Dimension Q
12 1/4 inches
Specifications Dimension R
1 1/4 inches
Specifications Dimension S
1/4 inches
Specifications Dimension T
2 1/2 inches
Specifications Dimension U
1/2 inches
Specifications Dimension V
2 1/2 inches
Specifications Dimension W
9/16 inches
Specifications Gear Ratio
1.79:1
Specifications Model
USC
Specifications Net Weight Per Pair
585 lbs.
Specifications Wheel Base
6'-0"
Specifications Wheel Load Per Pair
4500 lbs.
