Heavy-Duty Under Running End Truck Kits for Overhead Crane Systems
Heavy-Duty Under Running End Truck Kits for Overhead Crane Systems
SKU:REL-2c7060
Enhance overhead crane systems with our reliable Heavy-Duty End Truck Kits for smooth operation and robust support.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Heavy-Duty Under Running End Truck Kits for Overhead Crane Systems
$1,899.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Under Running End Truck Kits for Overhead Crane Systems
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your overhead crane system with our Heavy-Duty Under Running End Truck Kits. Designed for reliable performance, these kits feature a model USC with a substantial 3-ton capacity and a wheel load of 6500 lbs per pair. With precise dimensions and a durable build, these kits ensure smooth operation on runway beams. The gear ratio of 1.82:1 enhances efficiency, while the net weight of 635 lbs per pair offers robust support. Increase productivity and safety with these high-quality end truck kits, perfect for industrial applications.

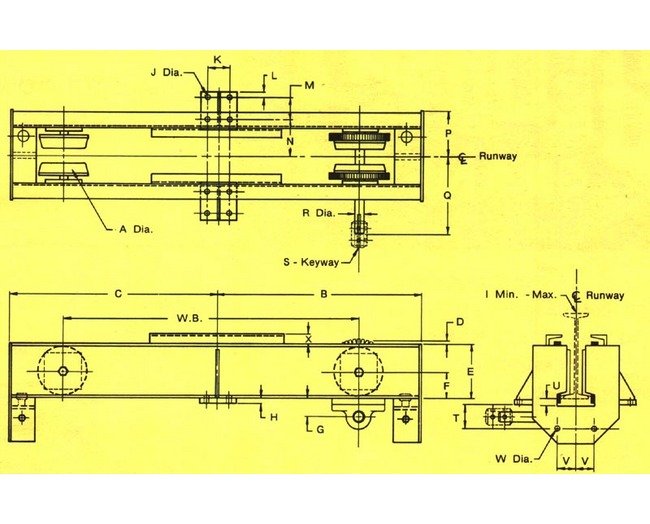

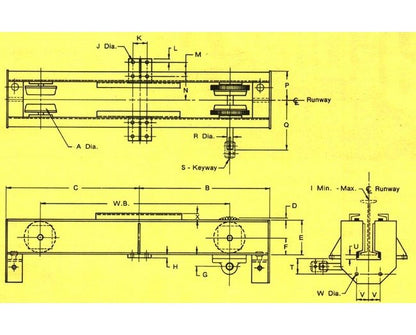

Product Specifications
Specifications Capacity
3 Tons
Specifications Dimension A
6 1/2 inches
Specifications Dimension B
3'-8"
Specifications Dimension C
3'-6"
Specifications Dimension D
7/8 inches
Specifications Dimension E
7 inches
Specifications Dimension F
3 13/16 inches
Specifications Dimension G
2 3/16 inches
Specifications Dimension H
3/4 inches
Specifications Dimension I Max
S15 x 42.9
Specifications Dimension I Min
S10 x 25.4
Specifications Dimension J
13/16 inches
Specifications Dimension K
3 1/2 inches
Specifications Dimension L
7/8 inches
Specifications Dimension M
3 inches
Specifications Dimension N
5 9/16 inches
Specifications Dimension P
7 inches
Specifications Dimension Q
11 9/16 inches
Specifications Dimension R
1 1/4 inches
Specifications Dimension S
1/4 inches
Specifications Dimension T
2 1/2 inches
Specifications Dimension U
13/16 inches
Specifications Dimension V
3 inches
Specifications Dimension W
11/16 inches
Specifications Gear Ratio
1.82:1
Specifications Model
USC
Specifications Net Weight Per Pair
635 lbs.
Specifications Wheel Base
6'-0"
Specifications Wheel Load Per Pair
6500 lbs.
