Heavy-Duty Under Running End Truck Kits for Overhead Cranes
Heavy-Duty Under Running End Truck Kits for Overhead Cranes
SKU:REL-50cc44
Enhance crane performance with our reliable Heavy-Duty End Truck Kits for 3-ton capacity, ensuring smooth operation and durability.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
Heavy-Duty Under Running End Truck Kits for Overhead Cranes
$2,899.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Under Running End Truck Kits for Overhead Cranes
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

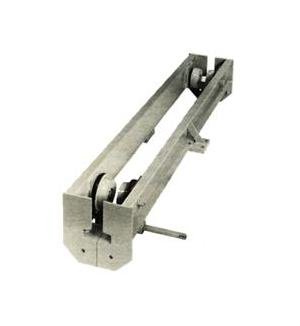

Upgrade your overhead crane system with our Heavy-Duty Under Running End Truck Kits. Designed for reliability and efficiency, these kits feature a robust construction to support heavy loads, with a capacity of 3 tons and a wheel load of 5500 lbs per pair. The dimensions are customizable to adapt to different runway beam sizes, ensuring optimal performance. With a gear ratio of 1.79:1, these kits provide smooth operation and precise control. Trust in our kits to meet your industrial lifting needs with durability and precision.
Ready to Grow Without Cash Flow Constraints?

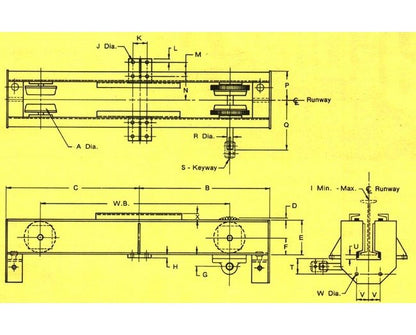

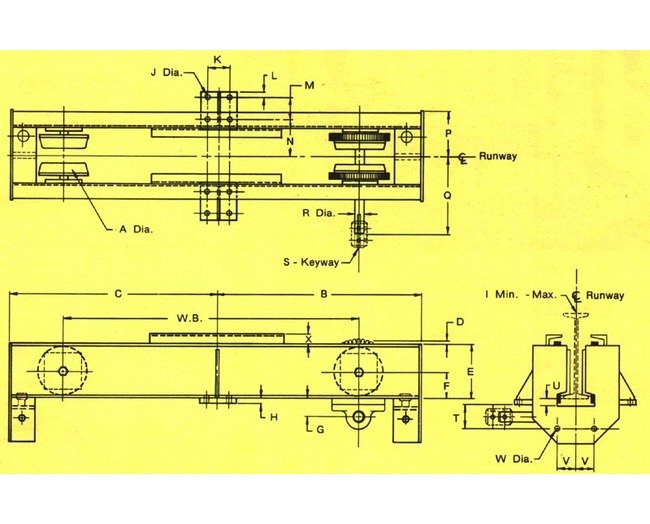

Product Specifications
Specifications Capacity
3 Tons
Specifications Dimension A
5 inches
Specifications Dimension B
3'-8"
Specifications Dimension C
3'-6"
Specifications Dimension E
6 inches
Specifications Dimension F
2 11/16 inches
Specifications Dimension G
2 3/16 inches
Specifications Dimension H
3/4 inches
Specifications Dimension I Max
S12 x 31.8
Specifications Dimension I Min
S8 x 18.4
Specifications Dimension J
11/16 inches
Specifications Dimension K
3 inches
Specifications Dimension L
3/4 inches
Specifications Dimension M
2 1/2 inches
Specifications Dimension N
4 7/8 inches
Specifications Dimension P
6 inches
Specifications Dimension Q
12 1/4 inches
Specifications Dimension R
1 1/4 inches
Specifications Dimension S
1/4 inches
Specifications Dimension T
2 1/2 inches
Specifications Dimension U
1/2 inches
Specifications Dimension V
2 1/2 inches
Specifications Dimension W
9/16 inches
Specifications Dimension X
1 inches
Specifications Gear Ratio
1.79:1
Specifications Model
USC
Specifications Net Weight Per Pair
665 lbs.
Specifications Wheel Base
6'-0"
Specifications Wheel Load Per Pair
5500 lbs.
