Heavy-Duty Under Running End Truck Kits for Overhead Cranes
Heavy-Duty Under Running End Truck Kits for Overhead Cranes
SKU:REL-716a7e
Enhance crane performance with our Heavy-Duty End Truck Kits. 5-ton capacity, 10k lbs wheel load, and precise dimensions for optimal functionality.
Regular price
$2,199.99
Regular price
Sale price
$2,199.99
Unit price
per
Initiate Order
Heavy-Duty Under Running End Truck Kits for Overhead Cranes
$2,199.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Under Running End Truck Kits for Overhead Cranes
$2,199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

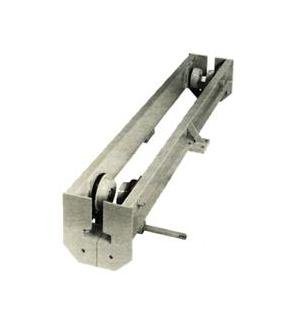

Upgrade your overhead crane system with our Heavy-Duty Under Running End Truck Kits. Designed for reliable performance, these kits boast a 5-ton capacity and a wheel load of 10,000 lbs per pair. With dimensions meticulously engineered for optimal functionality, including features like an 8'-6" wheel base and a gear ratio of 2.29:1, these kits ensure smooth operation on runway beams of varying sizes. Built to meet stringent industry standards, these kits guarantee durability and efficiency in any operational setting.

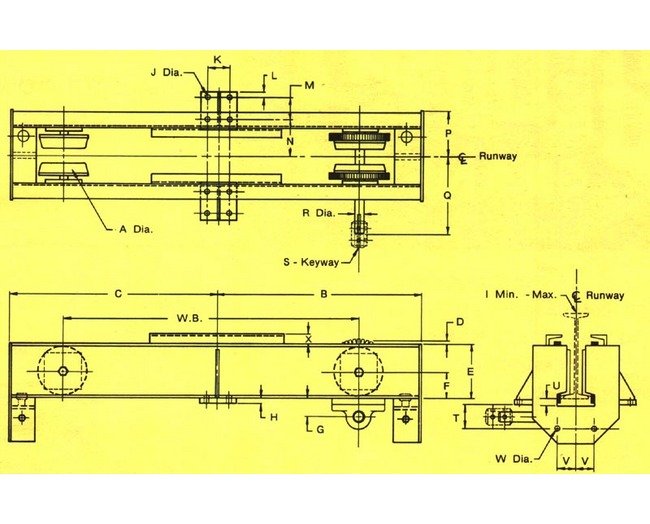

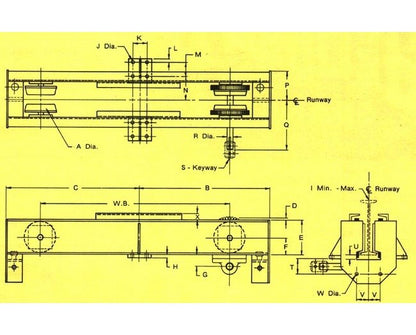

Product Specifications
Specifications Capacity
5 Tons
Specifications Dimension A
8 1/2 inches
Specifications Dimension B
5'-1"
Specifications Dimension C
5'-0"
Specifications Dimension D
3/8 inches
Specifications Dimension E
9 inches
Specifications Dimension F
4 5/16 inches
Specifications Dimension G
2 11/16 inches
Specifications Dimension H
1 1/4 inches
Specifications Dimension I Max
S18 x 54.7
Specifications Dimension I Min
S12 x 31.8
Specifications Dimension J
15/16 inches
Specifications Dimension K
3 3/4 inches
Specifications Dimension L
1 inches
Specifications Dimension M
3 1/2 inches
Specifications Dimension N
6 1/4 inches
Specifications Dimension P
8 inches
Specifications Dimension Q
14 5/8 inches
Specifications Dimension R
1 1/2 inches
Specifications Dimension S
3/8 inches
Specifications Dimension T
3 inches
Specifications Dimension U
5/8 inches
Specifications Dimension V
3 inches
Specifications Dimension W
13/16 inches
Specifications Gear Ratio
2.29:1
Specifications Model
USC
Specifications Net Weight Per Pair
1270 lbs.
Specifications Wheel Base
8'-6"
Specifications Wheel Load Per Pair
10000 lbs.
