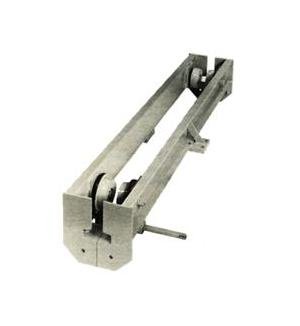

Enhance your crane system's performance with our Heavy-Duty Under Running End Truck Kits - USC Model. With a 5-ton capacity and a wheel load of 10000 lbs. per pair, these kits ensure seamless operation on runway beams. The precise dimensions, sturdy construction, and 2.29:1 gear ratio guarantee reliability and efficiency. Designed to meet institutional procurement standards, these kits are a top choice for reliable overhead crane components.
Product Specifications

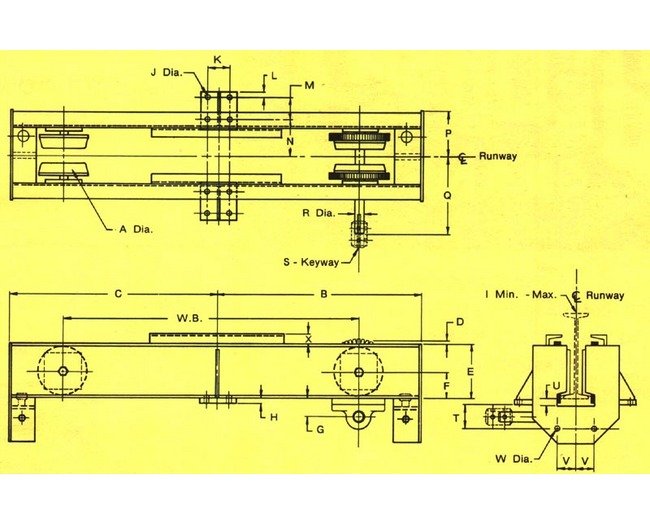

Specifications Capacity
5 Tons
Specifications Dimension A
8 1/2 inches
Specifications Dimension B
3'-10"
Specifications Dimension C
3'-9"
Specifications Dimension D
3/8 inches
Specifications Dimension E
9 inches
Specifications Dimension F
4 5/16 inches
Specifications Dimension G
2 11/16 inches
Specifications Dimension H
1 1/4 inches
Specifications Dimension I Max
S18 x 54.7
Specifications Dimension I Min
S12 x 31.8
Specifications Dimension J
15/16 inches
Specifications Dimension K
3 3/4 inches
Specifications Dimension L
1 inches
Specifications Dimension M
3 1/2 inches
Specifications Dimension N
6 1/4 inches
Specifications Dimension P
8 inches
Specifications Dimension Q
14 5/8 inches
Specifications Dimension R
1 1/2 inches
Specifications Dimension S
3/8 inches
Specifications Dimension T
3 inches
Specifications Dimension U
5/8 inches
Specifications Dimension V
3 inches
Specifications Dimension W
13/16 inches
Specifications Gear Ratio
2.29:1
Specifications Model
USC
Specifications Net Weight Per Pair
1000 lbs.
Specifications Wheel Base
6'-0"
Specifications Wheel Load Per Pair
10000 lbs.
