Heavy Duty Underhung Double Motor Crane
Heavy Duty Underhung Double Motor Crane
SKU:REL-e7b79f
Heavy Duty 5-ton Underhung Double Motor Crane for extreme conditions with top-notch stability and efficiency.
Regular price
$14,999.99
Regular price
Sale price
$14,999.99
Unit price
per
Initiate Order
Heavy Duty Underhung Double Motor Crane
$14,999.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Underhung Double Motor Crane
$14,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

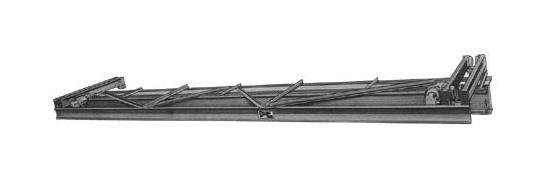

The Heavy Duty Underhung Double Motor Crane is a robust solution designed for extreme conditions, offering a 5-ton capacity, a span of 45 feet, and a reliable S24 x 80.0C girder size for stability. With a sturdy structural outrigger and top running, single girder design, this crane ensures efficient operation in indoor and outdoor environments. Featuring motor-driven functionality and safety enclosed bridge conductors, it meets stringent reliability and performance standards, making it ideal for industrial applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications 0
Runway Collectors
Specifications Bridge Conductors
Bare Copper Wire | Safety Enclosed
Specifications Capacity
5 Tons
Specifications Crane
Hand Geared | Motor Driven | Push Type
Specifications Crane Weight
7057 lbs.

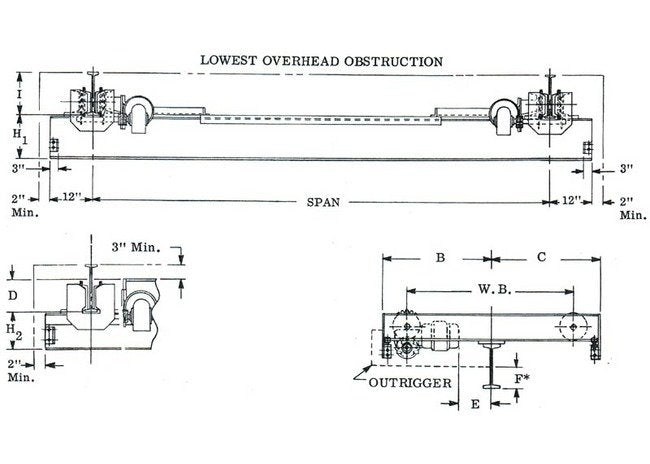

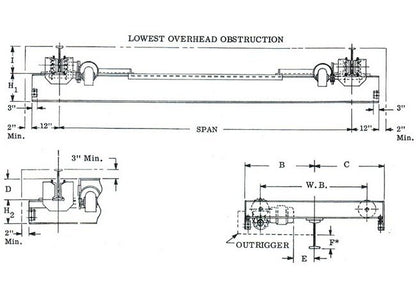

Specifications Dimension B
4'-5"
Specifications Dimension C
4'-3"
Specifications Dimension D
12 inches
Specifications Dimension E
26 inches
Specifications Dimension F
12 inches
Specifications Dimension H1
25 inches
Specifications Dimension H2
12 inches
Specifications Electric
&nbps;
Specifications Girder Size
S24 x 80.0C
Specifications Hoist Headroom
Hand Chain | Low Headroom | Standard Headroom
Specifications Max Runway Rail
S15 x 42.9
Specifications Min Runway Rail
S10 x 25.4
Specifications Model
Model USD Motorized Cranes
Specifications Outrigger
Structural
Specifications Span
45'-0"
Specifications Trolley
Hand Geared | Motor Driven | Push Type
Specifications Type
Top Running | Underhung | Single Girder
Specifications Usage
Extreme Conditions | Indoor Use | Outdoor Use
Specifications Wheel Base
7'-6"
Specifications Wheel Diameter
6 1/2 inches
Specifications Wheel Load Per Pair
7365 lbs.
