Heavy Duty Underhung Dual Motor Cranes
Heavy Duty Underhung Dual Motor Cranes
SKU:REL-1e419a
Powerful 2-ton dual motor cranes for reliable heavy lifting in extreme conditions. Ideal for indoor and outdoor use.
Regular price
$7,999.99
Regular price
Sale price
$7,999.99
Unit price
per
Initiate Order
Heavy Duty Underhung Dual Motor Cranes
$7,999.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Underhung Dual Motor Cranes
$7,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Underhung Dual Motor Cranes provide exceptional lifting performance with a capacity of 2 tons and a span of 35 feet. Featuring a sturdy S15 x 42.9C girder size for superior stability, these cranes are ideal for extreme indoor or outdoor conditions. With motor-driven operation and reliable components, these cranes ensure efficient and safe lifting operations. Designed for top running and underhung applications, they meet stringent industry standards for durability and performance.
Product Specifications
Specifications 0
Runway Collectors
Specifications Bridge Conductors
Bare Copper Wire | Safety Enclosed
Specifications Capacity
2 Tons
Specifications Crane
Hand Geared | Motor Driven | Push Type
Specifications Crane Weight
3188 lbs.

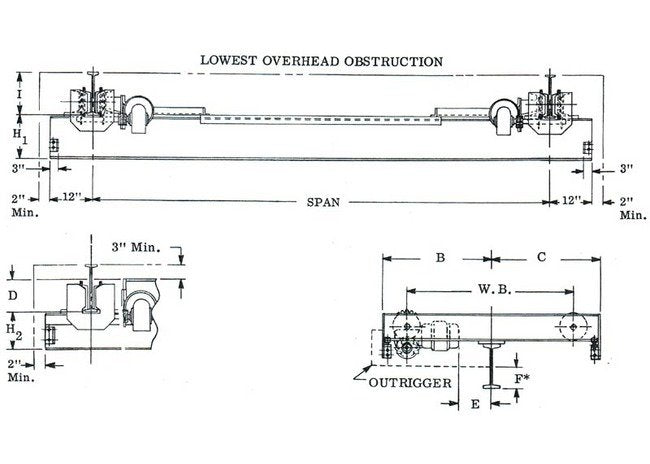

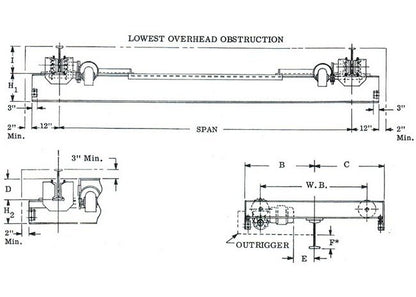

Specifications Dimension B
3'-2"
Specifications Dimension C
3'-0"
Specifications Dimension D
6 inches
Specifications Dimension E
12 inches
Specifications Dimension H1
16 inches
Specifications Dimension H2
9 inches
Specifications Electric
&nbps;
Specifications Girder Size
S15 x 42.9C
Specifications Hoist Headroom
Hand Chain | Low Headroom | Standard Headroom
Specifications Max Runway Rail
S12 x 31.8
Specifications Min Runway Rail
S8 x 18.4
Specifications Model
Model USD Motorized Cranes
Specifications Span
35'-0"
Specifications Trolley
Hand Geared | Motor Driven | Push Type
Specifications Type
Top Running | Underhung | Single Girder
Specifications Usage
Extreme Conditions | Indoor Use | Outdoor Use
Specifications Wheel Base
5'-0"
Specifications Wheel Diameter
5 inches
Specifications Wheel Load Per Pair
3125 lbs.
