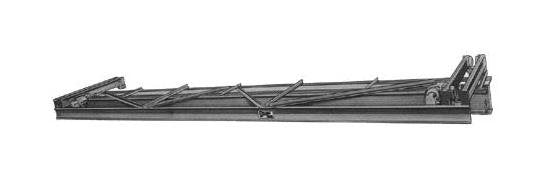

Heavy Duty Underhung Single Girder Crane with Dual Motors
Heavy Duty Underhung Single Girder Crane with Dual Motors
SKU:REL-1646b1
High-performance Underhung Single Girder Crane for industrial use, 3-ton capacity, top running design.
Regular price
$12,999.00
Regular price
Sale price
$12,999.00
Unit price
per
Initiate Order
Heavy Duty Underhung Single Girder Crane with Dual Motors
$12,999.00
Quantity: 1
Claim Your Seller Account
Heavy Duty Underhung Single Girder Crane with Dual Motors
$12,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Underhung Single Girder Crane with Dual Motors is a robust solution designed for extreme conditions and versatile indoor/outdoor use. With a Model USD Motorized mechanism and a capacity of 3 tons, this crane boasts a sturdy S24 x 80.0 girder size for enhanced stability. Its top running, underhung, single girder design ensures efficient operation, while the motorized functionality guarantees smooth performance. The structural outrigger provides additional support, and the crane complies with relevant safety standards, making it an ideal choice for industrial settings requiring reliable overhead lifting equipment.
Product Specifications
Specifications 0
Runway Collectors
Specifications Bridge Conductors
Bare Copper Wire | Safety Enclosed
Specifications Capacity
3 Tons
Specifications Crane
Hand Geared | Motor Driven | Push Type
Specifications Crane Weight
8723 lbs.

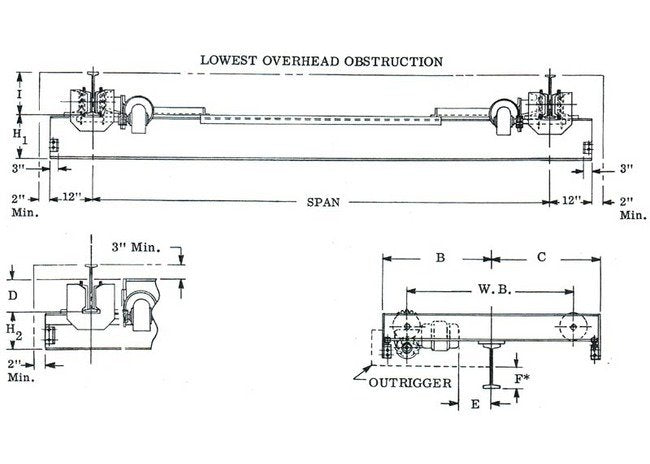

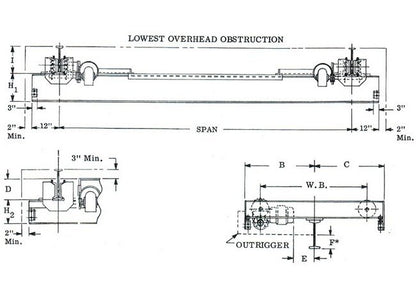

Specifications Dimension B
4'-11"
Specifications Dimension C
4'-9"
Specifications Dimension D
12 inches
Specifications Dimension E
27 inches
Specifications Dimension F
10 inches
Specifications Dimension H1
25 inches
Specifications Dimension H2
12 inches
Specifications Electric
&nbps;
Specifications Girder Size
S24 x 80.0
Specifications Hoist Headroom
Hand Chain | Low Headroom | Standard Headroom
Specifications Max Runway Rail
S15 x 42.9
Specifications Min Runway Rail
S10 x 25.4
Specifications Model
Model USD Motorized Cranes
Specifications Outrigger
Structural
Specifications Span
55'-0"
Specifications Trolley
Hand Geared | Motor Driven | Push Type
Specifications Type
Top Running | Underhung | Single Girder
Specifications Usage
Extreme Conditions | Indoor Use | Outdoor Use
Specifications Wheel Base
8'-6"
Specifications Wheel Diameter
6 1/2 inches
Specifications Wheel Load Per Pair
5610 lbs.
